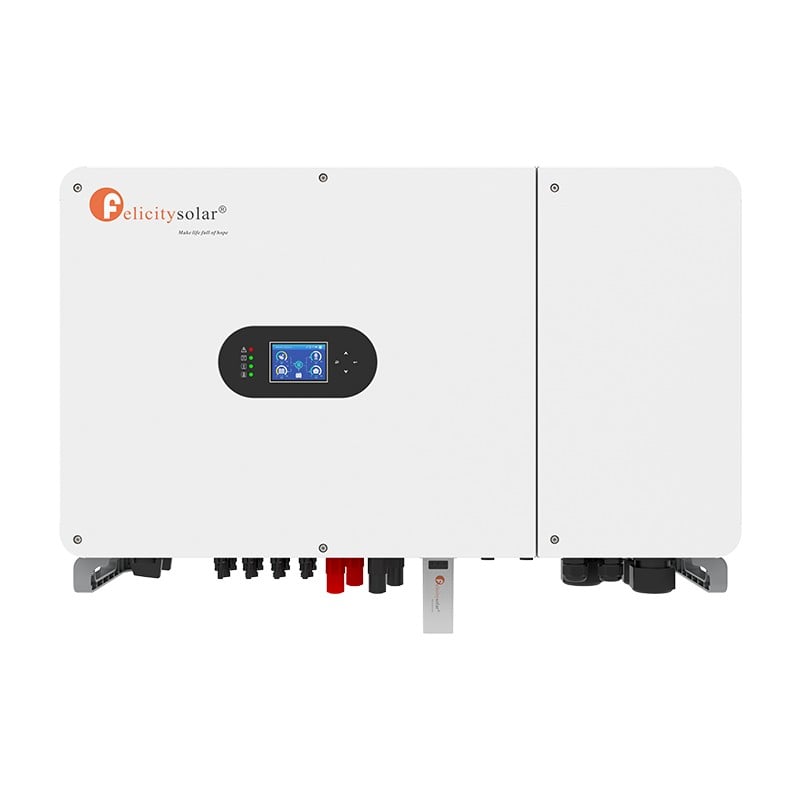

Felicity Solar IVGM50KHP3G2
Felicity MJS

IVGM50KHP3G2

Discover the Felicity Solar IVGM50KHP3G2 Inverter with IP65 protection and support for up to 12 parallel units. Ideal for robust solar solutions.

  • Rated AC Output Power: 50000 W
  • Max. DC Input Power: 80000 W
  • MPPT Voltage Range: 150-850 Vdc
18,350 AEDincl. VAT
Full Specifications

Features

230V/400V Three Phase pure

sine wave inverter

Self-consumption and feed-in to

the grid

Auto restart while AC

is recovering

Programmable supply priority for

battery or grid

Programmable multiple operation modes:

on grid, off grid and UPS

IP65 protection level

Overview

The Felicity Solar IVGM50KHP3G2 Inverter is engineered for high-performance solar energy systems. With a protection level of IP65 and the capability to support up to 12 parallel units, this inverter ensures reliability and efficiency in diverse environments.

Full specifications

Electrical

AC Input/Output Rated Current72.5 A
Battery DesignationIFPP/54/150/120/[(1P16S) NS] M/-20+50/95 ME
Cycle Life> 6000 Cycles
DC Injection Current<0.5% In
Depth of Discharge (DOD)90%
Max. AC Input/Output Power29. 9 kW
Max. Charging/Discharging Current50+50(A)
Max. Continuous Charge/Discharge Current100A
Max. Output Overcurrent Protection (A)(A)
Nominal Voltage51.2V
Peak Power (off-grid)(W)power, 10S
Rated AC Input/Output Power50 kW
Recommend Charge/Discharge Power50A
System Nominal Voltage256V 409.6V 614.4V
System Operating Voltage232-288V 371.2~460.8V
Anti-islanding ProtectionIntegrated
Battery Input Lightning ProtectionIntegrated
Battery Input Reverse Polarity ProtectionIntegrated
Battery TypeLFP (LiFeP04)
Battery Voltage Range160~800Vdc
Communication with BMSRS485,CAN
Full Load DC Voltage Range550~850Vdc
Grid RegulationNTS&UNE217001VDE4105.&UNE217002,G99,EN50549-1/-10,CEIO-21,EN50549-1/-10+NRS097-2-1,EN50549-1/-10+PolandNetherlandsDeviationsDeviations,
MPPT Range150~850Vdc
Max. AC Current79.7A
Max. AC Input/Output Current79.7 A
Max. AC Output Power55kW
Max. Charging Current50+50(A)
Max. DC Access Power100kW
Max. DC Input Voltage1000Vdc
Max. Discharging Current50+50(A)
Max. PV Isc55+55+55+55(A)
Min. DC Input Voltage150Vdc
Number of Battery Input2
Output Over Current ProtectionIntegrated
Output Over Voltage ProtectionIntegrated
Output Short-Circuit ProtectionIntegrated
Over Voltage CategoryOVCII (DC), OVC III (AC)
Power Factor0.8(Leading)to0.8(Lagging)
Rated AC Frequency50 /60 Hz (45~55Hz/55~65Hz)
Rated AC Voltage110V/190V,115V/200V,120V/208V,127V/220V,133V/230V,200V/346V,220V/380V,230V/400V,240V/415V,277V/480V
Rated DC Input Voltage600Vdc
Residual Current Monitoring UnitIntegrated
Start-up Voltage180Vdc
Number of Battery Inputs2
Max. DC Input Power80000 W
MPPT Voltage Range150-850 Vdc
PV Input Current36+36+36+36 A
Number of MPP Trackers4
Number of Strings per MPP Tracker2
Rated AC Output Power50000 W
AC Output Rated Current72.5 A
AC Wiring Mode3L+N+PE
THDI<3% (At Rated Power)
Surge Protection LevelTYPE II (DC), TYPE II (AC)
Monitor ModuleWiFi/GPRS

Mechanical

IP Rating of EnclosureIP21
Installation StyleWall-mounted
Package Dimension1114*774*469MM
Gross Weight107.1 kg
IP RatingIP65
CoolingSmart Cooling

Environmental

Protection DegreeIp65
Humidity0~95%(NoCondensation)
Operating Temperature Range-40 to 60°C(> 50°C Derating)
Warranty10 Years

Certifications

  • CE
