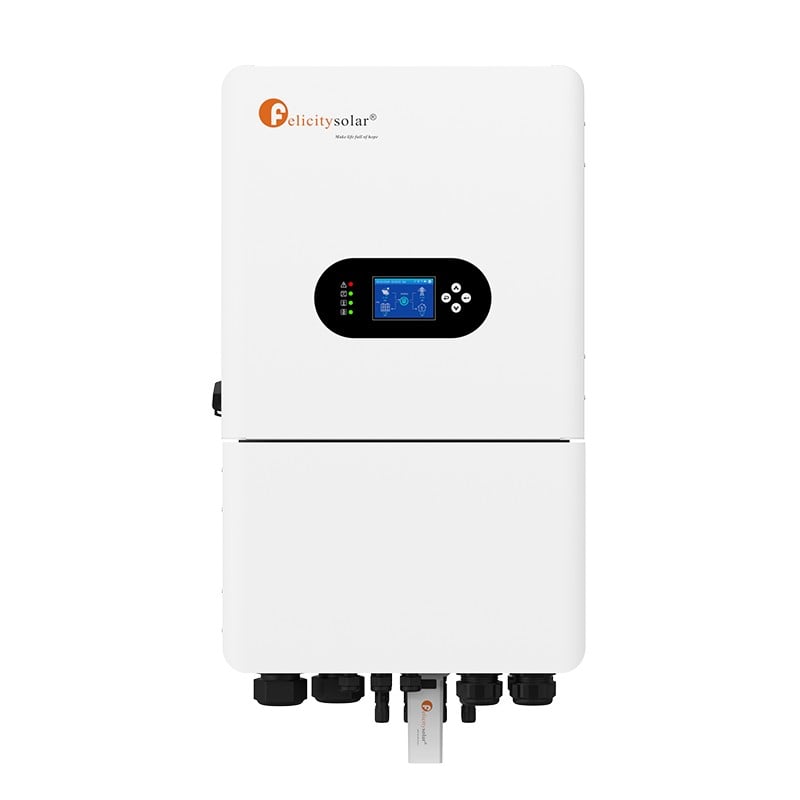

Felicity Solar IVGM18KLP3G1

Felicity Solar IVGM18KLP3G1 18kW Three-Phase Hybrid Solar Inverter

An 18 kW three-phase hybrid inverter from Felicity Solar, rated 18 kVA apparent and peaking at 19.8 kVA. It converts up to 28.8 kW of PV at 97.6% maximum efficiency and charges a 40-60 V bank at up to 330 A.

  • Rated Output Power: 18 kW
  • Max Apparent Power: 19.8 kVA
  • Max Efficiency: 97.6 %
  • Max PV Input Power: 28.8 kW
AED 9,900incl. VAT

In stock

Full SpecificationsDownload datasheet (PDF)

Felicity Solar IVGM18KLP3G1 18kW Three-Phase Hybrid Solar Inverter features

Delivers 18 kW continuously - 18 kVA rated apparent power, 19.8 kVA at peak - as three-phase 380-400 V over 3L+N+PE wiring

Takes up to 28.8 kW of solar on two MPPT trackers and converts it at 97.6% maximum efficiency, under an 800 V PV ceiling

Each tracker runs 160-650 V across 2+2 strings, with 36+36 A of PV input current and start-up from 160 V

Two battery inputs move up to 330 A into or out of a 40-60 V lithium-ion or lead-acid bank, over RS485 or CAN

26.1 A rated and 28.7 A maximum output current, 70 A AC pass-through, and a 20 ms switch to the full 18 kW on backup

IP65 smart-cooled enclosure of 750 x 450 x 268 mm and 48.7 kg net, rated -25 C to 60 C with derating above 45 C

About the Felicity Solar IVGM18KLP3G1 18kW Three-Phase Hybrid Solar Inverter

The Felicity Solar IVGM18KLP3G1 is an 18 kW three-phase hybrid solar inverter: 18 kW rated and 18 kVA of rated apparent power, peaking at 19.8 kVA on a 380-400 V line, at up to 97.6% maximum efficiency. It takes 28.8 kW of PV across two MPPT trackers and moves up to 330 A into or out of a 40-60 V battery bank, with the full 18 kW available on backup after a 20 ms transfer. Each tracker runs 160-650 V and accepts 2+2 strings and 36+36 A of PV input current under an 800 V ceiling, tracking at full load from 500 V to 800 V. AC output current is 26.1 A rated and 28.7 A maximum, with 70 A of pass-through and a 10-second surge to twice rated power. Two battery inputs talk RS485 or CAN to the BMS, and the charge algorithm self-adapts to it, so lithium-ion and lead-acid both work. The IP65 smart-cooled enclosure measures 750 x 450 x 268 mm, runs from -25 C to 60 C with derating above 45 C, and is certified to IEC 62109-1, EN 62109-1, IEC 62109-2 and EN 62109-2. We supply it as an authorised Felicity Solar distributor.

Specifications last updated 23 March 2026

Felicity Solar IVGM18KLP3G1 18kW Three-Phase Hybrid Solar Inverter full specifications

Electrical

AC Output Line Voltage380-400 V
AC Output Voltage220-230 V
AC Rated Output Current26.1 A
AC Wiring Mode3L+N+PE
Backup Rated Output Power18 kW
Battery Inputs2
Battery TypeLead-Acid, Li-Ion
Battery Voltage Range40-60 V
Charge AlgorithmSelf-Adaption to BMS
DC SwitchYes
Grid Frequency Range (50 Hz)45-55 Hz
Grid Frequency Range (60 Hz)55-65 Hz
Grid RegulationNRS 097-2-1, VDE4105, EN50549-1, AS 4777.2, GB/T 34120, GB/T 34133, GB/T 34129
Ground Fault Current MonitoringYes
Input Voltage Range184-264.5 V
MPPT Full-Load Voltage Range500-800 V
MPPT Trackers2
MPPT Voltage Range160-650 V
Max AC Input Current28.7 A
Max AC Pass-Through Current70 A
Max Apparent Power19.8 kVA
Max Charging Current330 A
Max Discharging Current330 A
Max Efficiency97.6 %
Max Output Current28.7 A
Max Output Overcurrent Protection92 A
Max PV Input Current36+36 A
Max PV Input Power28.8 kW
Max PV Voltage800 V
Max Short-Circuit Current54+54 A
Nominal AC Input Line Voltage380-400 V
Nominal AC Input Voltage220-230 V
Nominal Input Frequency50/60 Hz
Output Frequency50/60 Hz
Output Short-Circuit ProtectionYes
Overload ProtectionYes
PhaseThree Phase
Power Factor Adjustment Range0.8 leading to 0.8 lagging
ProtectionDC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, Thermal Protection, DC Terminal Insulation Impedance Monitoring, DC Component Monitoring, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (AFCI), Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch, Overvoltage Load Drop Protection, Residual Current (RCD) Detection
Rated Apparent Output Power18 kVA
Rated Output Power18 kW
Rated PV Input Voltage550 V
Start-Up Voltage160 V
Strings per MPPT2+2
Surge Protection Level (AC)II
Surge Rating2*rated (10s)
Transfer Time20 ms

Mechanical

BMS CommunicationRS485, CAN
Communication InterfaceRS232, RS485
DisplayLCD Touch Screen
Gross Weight60.2 kg
Monitoring ModuleWiFi/4G
Net Weight48.7 kg
Package Dimensions889 x 566 x 397 mm
Parallel Capability10
Safety StandardIEC/EN 62109-1, IEC/EN 62109-2
TopologyNon-Isolated

Environmental

CoolingSmart Cooling
IP RatingIP65
Operating Temperature Range-25 to 60 (>45 derating) °C

Certifications

  • IEC 62109-1
  • EN 62109-1
  • IEC 62109-2
  • EN 62109-2
