IVGM25KHP3G2 — Felicity Solar IVGM HP3G2 three-phase hybrid solar inverter

InvertersModel IVGM25KHP3G2

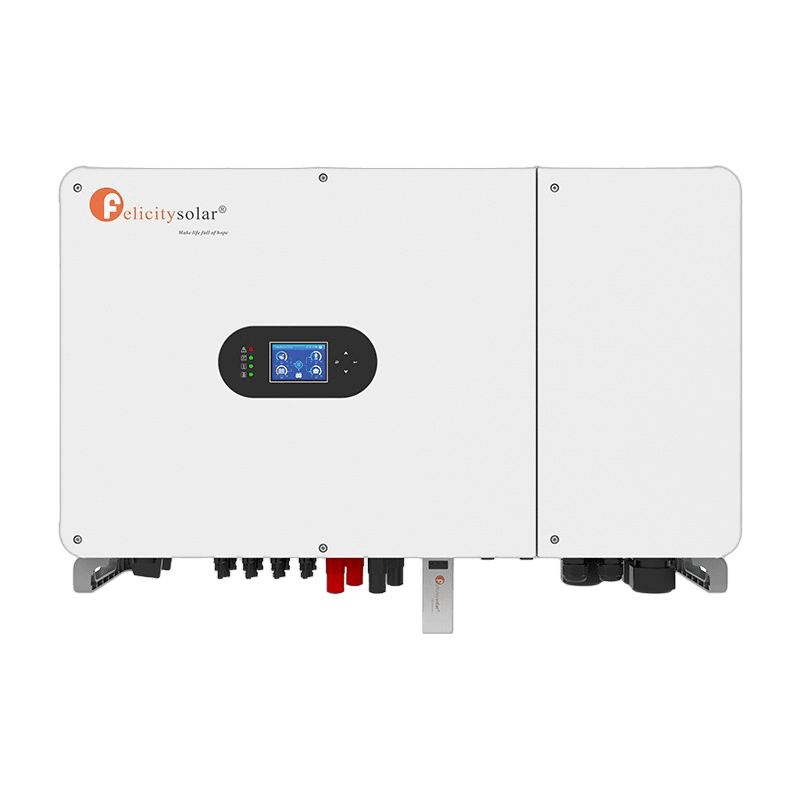

Felicity Solar IVGM25KHP3G2 25kW Three-Phase Hybrid Solar Inverter

A 25 kW three-phase hybrid inverter whose two 150-850 V MPPTs accept 40 kW of array, with 27.5 kW maximum AC output, 39.9 A maximum output current and 25 kW held on backup.

  • Rated Output Power: 25 kW
  • Max Efficiency: 97.6 %
  • Max PV Input Power: 40 kW
  • Battery Voltage Range: 160-800 V

Models in the IVGM25KHP3G2 – IVGM125KHP3G1 family

What sets the IVGM25KHP3G2 apart from the other 8 models in the family: AC Output Line Voltage 190-480 V; AC Output Voltage 110-277 V; AC Rated Output Current 36.3 A; Backup Rated Output Power 25 kW; Battery Voltage Range 160-800 V; Grid Regulation NTS & UNE217001 & UNE217002, CEI 0-21, NRS 097-2-1, EN50549-1/-10+Poland Deviations, VDE 4105, G99, EN50549-1/-10, EN50549-1/-10+Netherlands Deviations; MPPT Full-Load Voltage Range 555-850 V; MPPT Trackers 2.

AED 9,200incl. VAT

In stock

  • Delivered within 3 business days, door to door, to every market we serve.
  • Dispatched the same business day for an order placed before 21:00 (Dubai time), or the next business day after.
  • Delivery charge: free
  • 5-year warranty
Full SpecificationsDownload datasheet (PDF)

Felicity Solar IVGM25KHP3G2 25kW Three-Phase Hybrid Solar Inverter features

  • 40 kW of PV on a 25 kW inverter

    Maximum PV input power on the IVGM25KHP3G2 is 40 kW, taken as 36+36 A across two MPP trackers at up to 1000 V.

  • 27.5 kW maximum AC output

    Rated at 25 kVA, the IVGM25KHP3G2 peaks at 27.5 kW of AC output and 39.9 A of maximum output current.

  • 25 kW of backup rated power

    Backup rated output power is the full 25 kW, picked up in a 10 ms transfer time with under 3% harmonic distortion.

  • 160-800 V battery across two inputs

    Two inputs take an LFP pack from 160 V to 800 V and charge or discharge at 50+50 A, talking RS485 or CAN to its BMS.

  • 97.6% peak efficiency

    European efficiency is 97% and MPPT efficiency 99.9% over a 150-850 V tracking window that starts at 180 V.

  • IP65 from -40 to 60 °C

    Smart cooling, 87.1 kg net, wall-mounted, and paralleled up to 12 units with 144 A output overcurrent protection.

About the Felicity Solar IVGM25KHP3G2 25kW Three-Phase Hybrid Solar Inverter

The Felicity Solar IVGM25KHP3G2 is a 25 kW three-phase hybrid inverter that accepts up to 40 kW of PV input power, delivers 27.5 kW of maximum AC output power and 39.9 A of maximum output current, and keeps the full 25 kW available as backup rated power. Peak efficiency is 97.6% and European efficiency 97%. Its two MPP trackers cover 150-850 V, nominal 600 V, starting at 180 V and taking 36+36 A at up to 1000 V with 99.9% tracking efficiency. Two battery inputs accept an LFP pack from 160 V to 800 V and charge or discharge at 50+50 A, coordinated with the pack BMS over RS485 or CAN. Output is 3L+N+PE at 110-277 V and 50/60 Hz with under 3% total harmonic distortion, a 10 ms transfer time and output overcurrent protection at 144 A. The IP65 enclosure runs from -40 to 60 °C on smart cooling, weighs 87.1 kg net, mounts on a wall and parallels to 12 units. Certified to IEC 62109-1, IEC 62109-2 and EN 62477-1. We are an authorised Felicity Solar distributor and supply the IVGM25KHP3G2 from our own stock. Warranty: 5 Years.

Specifications last updated 7 August 2026

Felicity Solar IVGM25KHP3G2 25kW Three-Phase Hybrid Solar Inverter full specifications

Electrical(51)

AC Output Line Voltage190-480 V
AC Output Voltage110-277 V
AC Rated Output Current36.3 A
AC Wiring Mode3L+N+PE
Backup Rated Output Power25 kW
Battery Inputs2
Battery TypeLFP
Battery Voltage Range160-800 V
Charge AlgorithmSelf-Adaption to BMS
European Efficiency97 %
Grid Frequency Range (50 Hz)45-55 Hz
Grid Frequency Range (60 Hz)55-65 Hz
Grid RegulationNTS & UNE217001 & UNE217002, CEI 0-21, NRS 097-2-1, EN50549-1/-10+Poland Deviations, VDE 4105, G99, EN50549-1/-10, EN50549-1/-10+Netherlands Deviations
Ground Fault Current MonitoringYes
MPPT Efficiency99.9 %
MPPT Full-Load Voltage Range555-850 V
MPPT Trackers2
MPPT Voltage Range150-850 V
Max AC Output Power27.5 kW
Max AC Pass-Through Current200 A
Max Charging Current50+50 A
Max Discharging Current50+50 A
Max Efficiency97.6 %
Max Output Current39.9 A
Max Output Overcurrent Protection144 A
Max PV Access Power50 kW
Max PV Input Current36+36 A
Max PV Input Power40 kW
Max PV Voltage1000 V
Max Short-Circuit Current55+55 A
Min DC Input Voltage150 V
Nominal AC Input Line Voltage190-480 V
Nominal AC Input Voltage110-277 V
Nominal Input Frequency50/60 Hz
Output Frequency50/60 Hz
Output Short-Circuit ProtectionYes
Overload ProtectionYes
Overvoltage Category (AC)III
Overvoltage Category (DC)II
PhaseThree Phase
Power Factor Adjustment Range0.8 leading to 0.8 lagging
ProtectionPV Input Lightning Protection, PV String Input Reverse Polarity Protection, Battery Input Lightning Protection, AC Output Lightning Protection, Battery Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Short-Circuit Protection, Output Over Voltage Protection, Anti-islanding Protection
Rated Apparent Output Power25 kVA
Rated Output Power25 kW
Rated PV Input Voltage600 V
Start-Up Voltage180 V
Strings per MPPT2
Surge Protection Level (AC)II
Surge Rating1.5*rated (10s)
Total Harmonic Distortion<3 %
Transfer Time10 ms

Mechanical(11)

BMS CommunicationRS485, CAN
Communication InterfaceRS232, RS485
DisplayLCD Touch Screen
Gross Weight107.1 kg
Installation StyleWall-Mounted
Monitoring ModuleWiFi/GPRS
Net Weight87.1 kg
Package Dimensions1114 x 774 x 469 mm
Parallel Capability12
Safety StandardEN 62477-1, IEC 62109-1, IEC 62109-2
TopologyNon-Isolated

Environmental(5)

CoolingSmart Cooling
IP RatingIP65
Operating Altitude3000 (>2000 derating) m
Operating Temperature Range-40 to 60 (>50 derating) °C
Relative Humidity0-95 (non-condensing) %

Certifications(3)

  • EN 62477-1
  • IEC 62109-1
  • IEC 62109-2

Downloads & support

PDFThe manufacturer's sheet, to print or share

Frequently Asked Questions

How much solar can the IVGM25KHP3G2 take?

40 kW. Maximum PV input power is 40 kW on a 25 kW inverter, drawn as 36+36 A across two MPP trackers that cover 150-850 V and accept up to 1000 V.

What is the maximum output of the IVGM25KHP3G2?

27.5 kW. Maximum AC output power is 27.5 kW above the 25 kVA rating, at up to 39.9 A of output current, with output overcurrent protection at 144 A.

Which battery works with the IVGM25KHP3G2?

160-800 V. An LFP pack anywhere in that range connects to either of the two battery inputs and charges or discharges at 50+50 A, over RS485 or CAN to its BMS.

Can the IVGM25KHP3G2 be installed outdoors?

IP65. The enclosure is IP65 and runs from -40 to 60 °C with derating above 50 °C, wall-mounted on smart cooling at 87.1 kg net.
