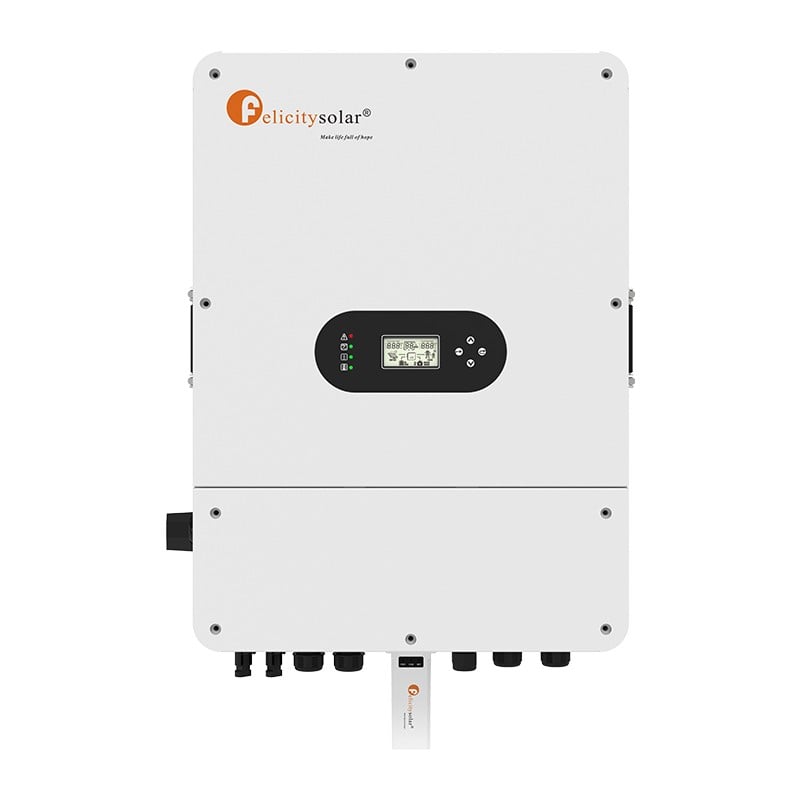

Felicity Solar IVGM15KLP3G1
Felicity MJS

IVGM15KLP3G1

Discover the Felicity Solar IVGM15KLP3G1 Inverter with dimensions 397x889x566mm, operating in -40°C to 60°C, ideal for diverse climates.

  • Rated AC Output Power: 15kW
  • Max AC Apparent Power: 16.5kVA
  • Max PV Input Power: 24kW
8,250 AEDincl. VAT
Full Specifications

Features

230V/400V Three phase Pure

sine wave inverter

Self-consumption and feed-in to

the grid

Auto restart while AC

is recovering

Programmable supply priority for

battery or grid

Programmable multiple operation modes:

On grid, Off grid and UPS

IP65 protection level

Overview

Introducing the Felicity Solar IVGM15KLP3G1 Inverter, a robust solution designed to meet your solar energy needs. With its compact dimensions and wide ambient temperature range, this inverter is engineered for optimal performance in various environmental conditions.

Full specifications

Electrical

Battery TypeLi-Ion / Lead-acid
Battery Voltage Range40-60 V
Max Charging / Discharging Current280A
Max PV Input Power24kW
Max PV Input Voltage800 V
Start-up Voltage160 V
MPPT Voltage Range160-650 V
Rated DC Input Voltage550 V
Full Load DC Voltage Range416V-800V
Max Operating PV Input Current36+36 A
Max Input Short-Circuit Current54+54 A
Number of MPPT / Strings per MPPT2/2+2
Rated AC Input/Output Active Power15kW
Max AC Input/Output Apparent Power16.5kVA
Peak Power (Off-grid)2 Times of Rated Power, 10s
Rated AC Input/Output Current21.8A
Max AC Input/Output Current23.9A
Max Continuous AC Passthrough (Grid to Load)70A
Max Output Overcurrent Protection92A
Rated Input/Output Voltage Range220/380, 230/400Vac (-20% ~ +15%)
AC Wiring Mode3L+N+PE
Rated Grid Frequency Range50/60Hz (45-55Hz / 55-65Hz)
DC Polarity Reverse Connection ProtectionYes
AC Output Overcurrent ProtectionYes
AC Output Overvoltage ProtectionYes
AC Output Short Circuit ProtectionYes
Thermal ProtectionYes
DC Terminal Insulation Impedance MonitoringYes
DC Component MonitoringYes
Power Network MonitoringYes
Island Protection MonitoringYes
DC Input SwitchYes
Overvoltage Load Drop ProtectionYes
Residual Current (RCD) DetectionYes
Surge Protection LevelTYPE II (DC), TYPE II (AC)
Communication with BMSRS485/CAN
Monitor ModuleWiFi/4G

Mechanical

Net Weight48.7 kg
Gross Weight60.2 kg
Product Dimensions (W x H x D)750 x 450 x 268 mm
Package Dimensions889 x 566 x 397 mm
Protection DegreeIP65

Environmental

Grid StandardsNRS 097-2-1, VDE4105, EN50549-1, AS 4777.2, GB/T 34120, GB/T 34133, GB/T 34129
Safety / EMC StandardsIEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
Warranty5 Years / 10 Years (extended option)

Certifications

  • CE
  • EU WEEE
