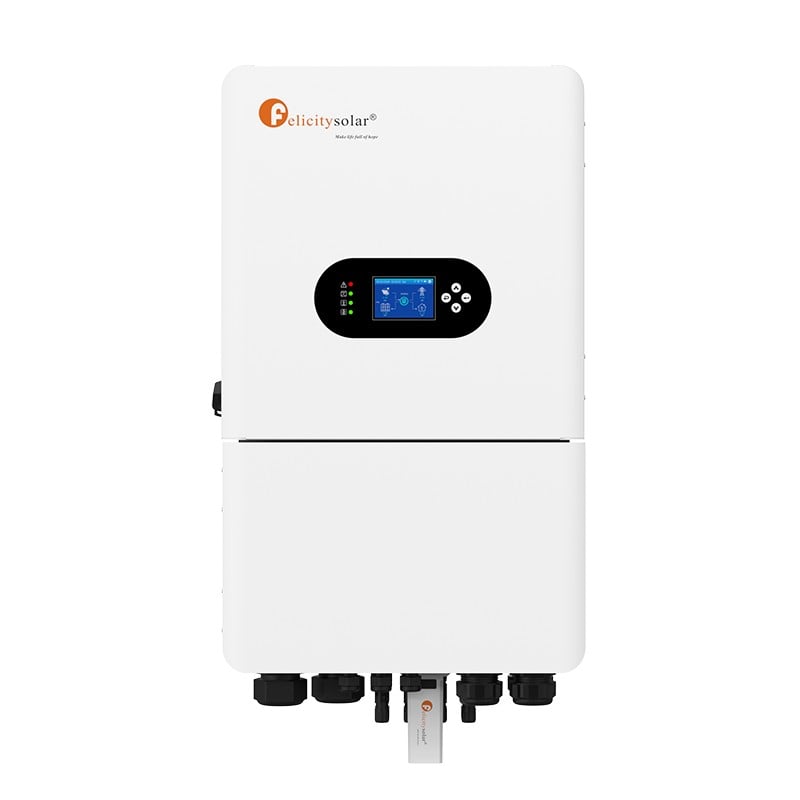

Felicity Solar IVGM20KLP3G1
Felicity MJS

IVGM20KLP3G1

Discover the Felicity Solar IVGM20KLP3G1 Inverter with dimensions 872.5mm x 450mm x 299.7mm, perfect for diverse temperature ranges.

  • Rated AC Output Power: 20kW
  • Max AC Apparent Power: 22kVA
  • Max PV Input Power: 32kW
7,409 AEDincl. VAT
Full Specifications

Features

230V/400V Three phase Pure

sine wave inverter

Self-consumption and feed-in to

the grid

Auto restart while AC

is recovering

Programmable supply priority for

battery or grid

Programmable multiple operation modes:

On grid, Off grid and UPS

IP65 protection level

Overview

Introducing the Felicity Solar IVGM20KLP3G1 Inverter, a robust solution designed to meet your energy needs. With its compact dimensions and ability to operate in extreme temperatures, this inverter is ideal for various applications.

Full specifications

Electrical

MPPT Voltage Rang160~650V
Max. AC Input/Output Apparent Power22 kVA
Max. Continuous AC Passthrough (grid to load)70A
Max. Output Overcurrent Protection92A
Max. discharging current350 A
Max.AC Input/Output Current31.9 A
Max.charging current350 A
No. of MPP Trackers /No. of Strings MPP Tracker2/2+2
Power Factor Adjustment Range<3%
Rated Input/Output Grid Frequency/Range50/60 Hz
Rated Input/Output Voltage/Range220/380,230
Total Current Harmonic Distortion THDi0.8( leading
Max. Input Short-Circuit Current54+54(A)
Max. Operating PV Input Current36+36(A)
Max. PV Input Power32kW
Max. PV Input Voltage800V
Rated DC Input Voltage550V
Start-up Voltage160V power Network Monitoring YES
Battery TypeLi-Ion / Lead-acid
Battery Voltage Range40-60 V
Max Charging / Discharging Current350A
MPPT Voltage Range160-650 V
Full Load DC Voltage Range550V-800V
Number of MPPT / Strings per MPPT2/2+2
Rated AC Input/Output Active Power20kW
Max AC Input/Output Apparent Power22kVA
Peak Power (Off-grid)2 Times of Rated Power, 10s
Rated AC Input/Output Current28.9A
Max AC Input/Output Current31.9A
Max Continuous AC Passthrough (Grid to Load)70A
Max Output Overcurrent Protection92A
Rated Input/Output Voltage Range220/380, 230/400Vac (-20% ~ +15%)
AC Wiring Mode3L+N+PE
Rated Grid Frequency Range50/60Hz (45-55Hz / 55-65Hz)
DC Polarity Reverse Connection ProtectionYes
AC Output Overcurrent ProtectionYes
AC Output Overvoltage ProtectionYes
AC Output Short Circuit ProtectionYes
Thermal ProtectionYes
DC Terminal Insulation Impedance MonitoringYes
DC Component MonitoringYes
Power Network MonitoringYes
Island Protection MonitoringYes
DC Input SwitchYes
Overvoltage Load Drop ProtectionYes
Residual Current (RCD) DetectionYes
Surge Protection LevelTYPE II (DC), TYPE II (AC)
Communication with BMSRS485/CAN
Monitor ModuleWiFi/4G

Mechanical

Net Weight48.7 kg
Gross Weight60.2 kg
Product Dimensions (W x H x D)750 x 450 x 268 mm
Package Dimensions889 x 566 x 397 mm
Protection DegreeIP65

Environmental

Grid StandardsNRS 097-2-1, VDE4105, EN50549-1, AS 4777.2, GB/T 34120, GB/T 34133, GB/T 34129
Safety / EMC StandardsIEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
Warranty5 Years / 10 Years (extended option)

Certifications

  • CE
