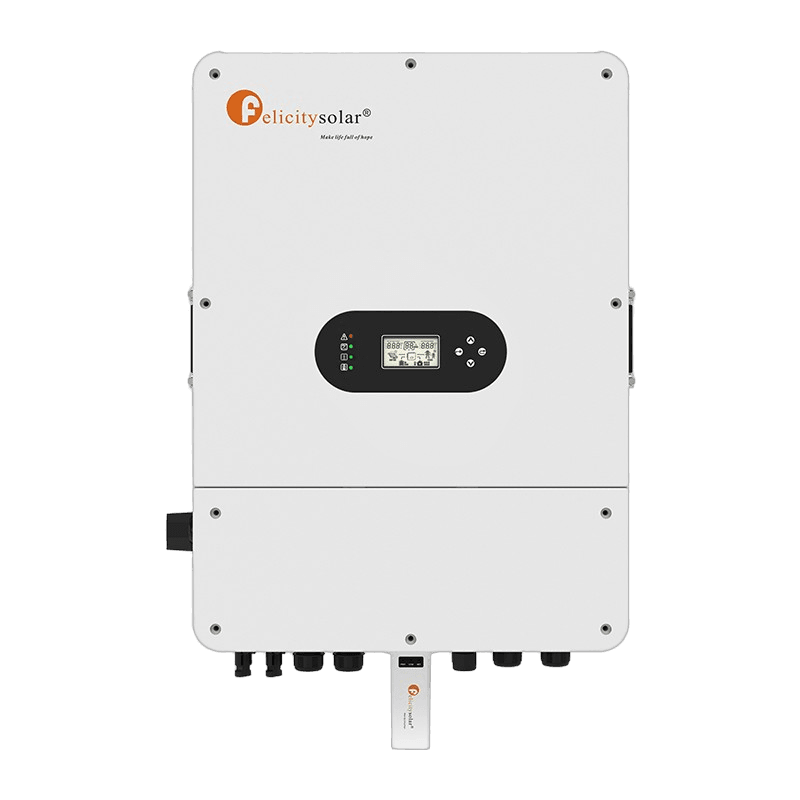

IVGM5KLP2G1 — Felicity Solar IVGM low-voltage hybrid solar inverter

Felicity Solar IVGM5KLP2G1 5kW Single-Phase Hybrid Solar Inverter

Single-phase 5 kW hybrid inverter with a 5.5 kW AC ceiling, 120 A of charge and discharge on a 40-60 V bank, and 13+13 A across two MPP trackers.

Rated Output Power: 5 kW
Max Efficiency: 97.6 %
Battery Voltage Range: 40-60 V
Phase: Single Phase

AED 2,300incl. VAT

In stock

Full Specifications Download datasheet (PDF)

Felicity Solar IVGM5KLP2G1 5kW Single-Phase Hybrid Solar Inverter features

5.5 kW maximum AC output from a 5 kW rating

Single-phase 220-230 V on an L+N+PE connection at up to 22.9 A, with a surge of 2x rated for 10 s.

120 A charging and 120 A discharging, up to 5 kW either way

One battery input carries a 40-60 V lead-acid or Li-Ion bank and reads its BMS over RS485 and CAN.

7.5 kW of recommended PV on two MPP trackers

The trackers take 13+13 A across a 120-425 V window rated 380 V, from a 100 V start-up to 500 V.

97.6% peak efficiency and 99.9% MPPT efficiency

European efficiency is 97%, power factor sits above 0.99 and total harmonic distortion stays under 3%.

IP65 enclosure rated -25 to 60 °C, derating above 45 °C

Smart cooling holds noise under 35 dB at up to 2000 m and 0-95% non-condensing humidity.

Up to 6 units in parallel with a 10 ms transfer time

Wall-mounted at 33.5 kg net, LCD and LED display, WiFi or GPRS monitoring, RS232 and RS485 ports.

About the Felicity Solar IVGM5KLP2G1 5kW Single-Phase Hybrid Solar Inverter

The Felicity Solar IVGM5KLP2G1 is a 5 kW single-phase hybrid inverter that outputs 220-230 V at up to 22.9 A, peaks at 5.5 kW of AC power, charges and discharges a 40-60 V battery at 120 A, and accepts up to 7.5 kW of solar across two MPP trackers. Those trackers take 13+13 A over a 120-425 V window rated at 380 V, start at 100 V, reach 500 V and hold 99.9% MPPT efficiency; conversion peaks at 97.6% with a 97% European figure, power factor above 0.99 and harmonic distortion under 3%. The single battery input suits a 40-60 V lead-acid or Li-Ion bank and talks to the BMS over RS485 and CAN. Grid support covers CEI 0-21, G99, VDE 4105, EN 50549-1 and NRS 097-2-1 on an L+N+PE connection at 50/60 Hz, with 10 ms transfer, anti-islanding, GFCI and insulation-resistance detection. The isolated transformer-based unit is wall-mounted and IP65, weighs 33.5 kg net, stays under 35 dB on smart cooling from -25 to 60 °C, monitors over WiFi or GPRS and parallels up to 6 units; its warranty term is 10 Years. We are an authorised Felicity Solar distributor and supply the IVGM5KLP2G1 from our own stock.

Specifications last updated 7 August 2026

Felicity Solar IVGM5KLP2G1 5kW Single-Phase Hybrid Solar Inverter full specifications

Electrical

AC Output Voltage	220-230 V
AC Rated Output Current	20.8 A
AC Wiring Mode	L+N+PE
Backup Rated Output Power	5 kW
Battery Inputs	1
Battery Type	Lead-Acid, Li-Ion
Battery Voltage Range	40-60 V
Charge Algorithm	Self-Adaption to BMS
European Efficiency	97 %
Grid Frequency Range (50 Hz)	45-55 Hz
Grid Frequency Range (60 Hz)	55-65 Hz
Grid Regulation	CEI 0-21, G99, VDE 4105, EN 50549-1, NRS 097-2-1, C10/11, NTS & UNE217001 & UNE217002, PORTARIA N° 140 & 515
Ground Fault Current Monitoring	Yes
MPPT Efficiency	99.9 %
MPPT Full-Load Voltage Range	290-425 V
MPPT Trackers	2
MPPT Voltage Range	120-425 V
Max AC Input Current	40 A
Max AC Output Power	5.5 kW
Max AC Pass-Through Current	40 A
Max Charge/Discharge Power	5 kW
Max Charging Current	120 A
Max Discharging Current	120 A
Max Efficiency	97.6 %
Max Output Current	22.9 A
Max PV Input Current	13+13 A
Max PV Voltage	500 V
Max Recommended PV Power	7.5 kW
Max Short-Circuit Current	17+17 A
Nominal AC Input Voltage	220-230 V
Nominal Input Frequency	50/60 Hz
Output Frequency	50/60 Hz
Output Short-Circuit Protection	Yes
Overload Protection	Yes
PV Working Voltage Range	90-500 V
Phase	Single Phase
Power Factor	>0.99
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
Protection	Output Over Current Protection, Output Over Power Protection, Output Short-Circuit Protection, Anti-islanding Protection, GFCI Protection, Insulation Resistor Detection
Rated Apparent Output Power	5 kVA
Rated Output Power	5 kW
Rated PV Input Voltage	380 V
Start-Up Voltage	100 V
Strings per MPPT	1+1
Surge Rating	2*rated (10s)
Total Harmonic Distortion	<3 %
Transfer Time	10 ms

Mechanical

BMS Communication	RS485, CAN
Communication Interface	RS232, RS485
Display	LCD, LED
Gross Weight	40.5 kg
Installation Style	Wall-Mounted
Monitoring Module	WiFi/GPRS
Net Weight	33.5 kg
Package Dimensions	787 x 547 x 358 mm
Parallel Capability	6
Safety Standard	IEC 62109-1, IEC 62109-2
Topology	Isolated (transformer-based)

Environmental

Cooling	Smart Cooling
IP Rating	IP65
Noise Level	<35 dB
Operating Altitude	2000 m
Operating Temperature Range	-25 to 60 (>45 derating) °C
Relative Humidity	0-95 (non-condensing) %

Certifications

IEC 62109-1
IEC 62109-2

Frequently Asked Questions

7.5 kW is the maximum recommended PV power, split across two MPP trackers that accept 13+13 A over a 120-425 V window rated at 380 V, start tracking from 100 V, reach 500 V at most and track at 99.9% efficiency.

120 A in each direction, up to 5 kW of charge or discharge power, on one battery input sized for a 40-60 V lead-acid or Li-Ion bank whose BMS is read over RS485 and CAN.

5.5 kW is the ceiling, above a 5 kW rated and 5 kW backup output, delivered single-phase at 220-230 V and up to 22.9 A on an L+N+PE connection; AC input current tops out at 40 A and transfer takes 10 ms.

10 Years is the warranty term, and the unit is certified to IEC 62109-1 and IEC 62109-2, with grid support for CEI 0-21, G99, VDE 4105, EN 50549-1 and NRS 097-2-1. We are an authorised Felicity Solar distributor.
