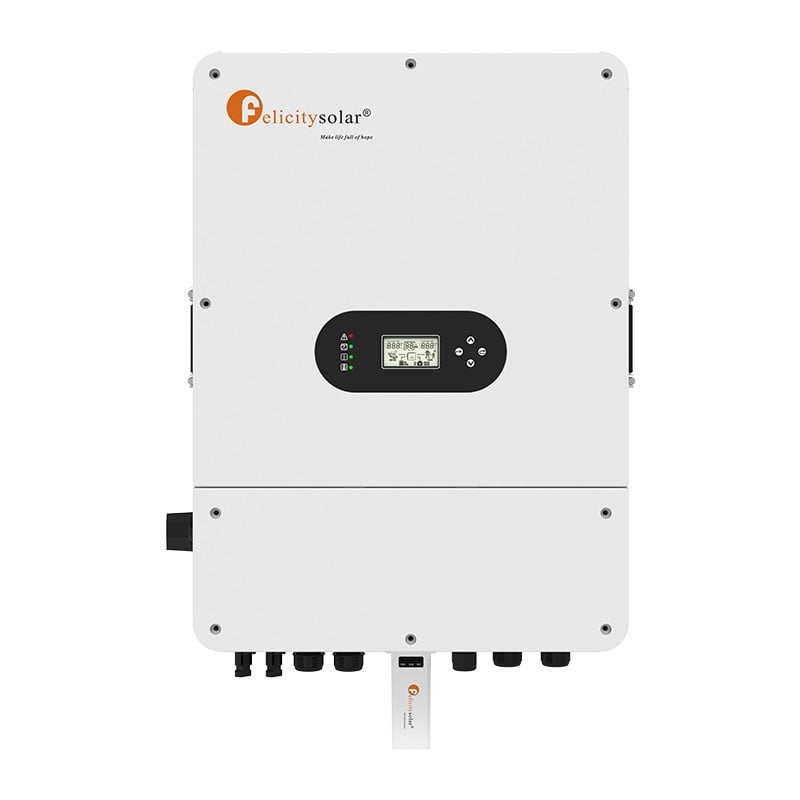

Felicity Solar IVGM14KLP3G1
Felicity MJS

IVGM14KLP3G1

Discover Felicity Solar's IVGM14KLP3G1 inverter with dimensions 872.5mm x 450mm x 299.7mm, ideal for extreme temperatures.

  • Rated AC Output Power: 14kW
  • Max AC Apparent Power: 15.4kVA
  • Max PV Input Power: 22.4kW
7,700 AEDincl. VAT
Full Specifications

Features

230V/400V Three phase Pure

sine wave inverter

Self-consumption and feed-in to

the grid

Programmable supply priority for

battery or grid

Programmable multiple operation modes:

On grid, Off grid and UPS

Supporting WIFI monitoring and

Fsolar Smart Cloud Monitoring System

Battery charge and discharge

current up to 350A

Overview

Introducing the Felicity Solar IVGM14KLP3G1 inverter, a robust solution designed to withstand extreme conditions. With its compact dimensions and lightweight design, this inverter is perfect for diverse energy needs.

Full specifications

Electrical

Max. Input Short-Circuit Current39+39(A) ResidualCurrent(RCD)Detection YES
Max. Operating PV Input Current26+26(A)
Max. PV Input Power22.4kW
Max. PV Input Voltage800V
Rated DC Input Voltage550V
Start-up Voltage160V power Network Monitoring YES
Battery TypeLi-Ion / Lead-acid
Battery Voltage Range40-60 V
Max Charging / Discharging Current260A
MPPT Voltage Range160-650 V
Full Load DC Voltage Range389V-800V
Number of MPPT / Strings per MPPT2/2+2
Rated AC Input/Output Active Power14kW
Max AC Input/Output Apparent Power15.4kVA
Peak Power (Off-grid)2 Times of Rated Power, 10s
Rated AC Input/Output Current20.3A
Max AC Input/Output Current22.3A
Max Continuous AC Passthrough (Grid to Load)70A
Max Output Overcurrent Protection92A
Rated Input/Output Voltage Range220/380, 230/400Vac (-20% ~ +15%)
AC Wiring Mode3L+N+PE
Rated Grid Frequency Range50/60Hz (45-55Hz / 55-65Hz)
DC Polarity Reverse Connection ProtectionYes
AC Output Overcurrent ProtectionYes
AC Output Overvoltage ProtectionYes
AC Output Short Circuit ProtectionYes
Thermal ProtectionYes
DC Terminal Insulation Impedance MonitoringYes
DC Component MonitoringYes
Power Network MonitoringYes
Island Protection MonitoringYes
DC Input SwitchYes
Overvoltage Load Drop ProtectionYes
Residual Current (RCD) DetectionYes
Surge Protection LevelTYPE II (DC), TYPE II (AC)
Communication with BMSRS485/CAN
Monitor ModuleWiFi/4G

Mechanical

Net Weight48.7 kg
Gross Weight60.2 kg
Product Dimensions (W x H x D)750 x 450 x 268 mm
Package Dimensions889 x 566 x 397 mm
Protection DegreeIP65

Environmental

Grid StandardsNRS 097-2-1, VDE4105, EN50549-1, AS 4777.2, GB/T 34120, GB/T 34133, GB/T 34129
Safety / EMC StandardsIEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
Warranty5 Years / 10 Years (extended option)

Certifications

  • CE
  • EU WEEE
  • IEC 60947-1
  • IEC 60947-2
