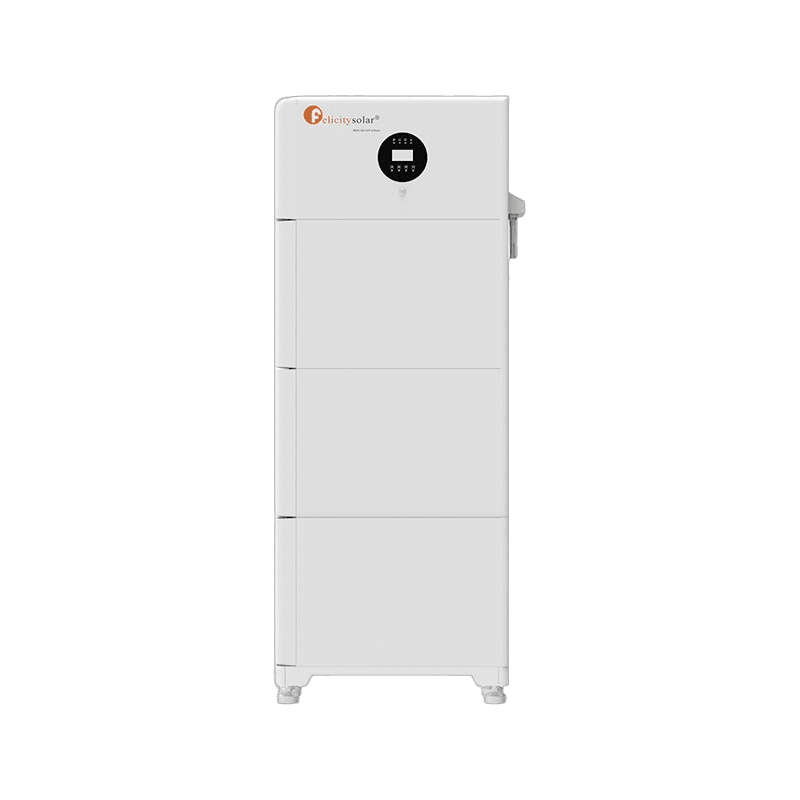

Felicity Solar AI100-5048 ESS
Felicity MJS

AI100-5048 ESS

Discover the Felicity Solar AI100-5048 ESS Inverter with 5000VA output, 230Vac voltage, and adjustable frequency for optimal solar energy use.

  • Rated Output Power: 5000VA
  • Max. Solar Charging Current: 100A
2,386 AEDincl. VAT
Full Specifications

Features

Wide PV voltage input

range (90VDC-450VDC)

Battery charging current up

to 100A

Built-in MPPT solar charge

controller

Configurable input voltage range

for home appliances and personal computers

Compatible with mains voltage

or generator power

Overload / Over temperature

/ short circuit protection

Overview

Introducing the Felicity Solar AI100-5048 ESS, a high-performance inverter designed to optimize your solar energy system. With a rated output power of 5000VA and a nominal output voltage of 230Vac±5%, this inverter ensures efficient energy conversion and reliability.

Full specifications

Electrical

Charge Current Regulation10-100A (Adjustable unit is 1A) Al100-5048 Inverter parameters
Max. Input Current25A Parallel capability Yes, up to 12 units
Max. Input Power6000W Output Voltage Waveform Pure sine wave
Max. PV Open Circuit Voltage500V 5000W
Max. Solar Charging Current100A Nominal Output Voltage 230Vac+5%
Output Short Circuit ProtectionYes
Output Voltage WaveformAs same as input waveform
Over Charge ProtectionYes Model AI100-5048
Rated Output Power5000W
Nominal Output Voltage230Vac±5%
Nominal Output Frequency (HZ)50±0.3Hz/60±0.3Hz (Adjustable)
PV Voltage Working Range90V-450V
Nominal DC Input Voltage48VDC
Max. Charge Current100A
Peak Efficiency93%
Efficiency (Line Mode)>95% (Rated R load, battery full charged)
Usable Capacity5.12kWh
Battery TypeLiFePO4
Nominal Voltage51.2V
Depth Of Discharge (DOD)≥ 95%

Mechanical

Package Dimension (D*W*H)792x507x278mm
Net Weight (KG)17.8kg
Product Size (D*W*H)210x350x180mm

Environmental

Altitude<2000m
Operating Temperature-10C°~50C°
Range Storage Temperature-15C°~60C°
Relative humidity5%~95%
Over-Load Protection (Smps Load)10.5s@105%<125% load / 7.5s@125%<150% load
Environmental Protection RatingIP20

Certifications

  • IP20
