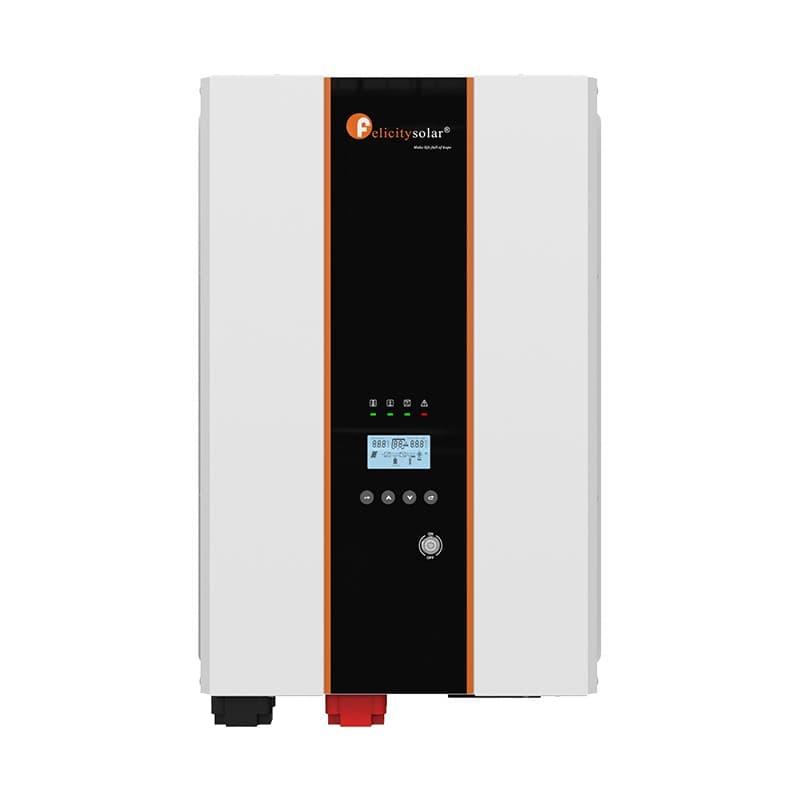

Felicity Solar IVPS7548P2G1 6000W Inverter / Charger

The Felicity Solar IVPS7548P2G1 is a 48V inverter-charger rated 7500VA / 6000W continuous, with a 15000VA surge held for 5 seconds, a 60A maximum charge current and a 15ms typical transfer time. The unit measures 494 x 420 x 195 mm and weighs 38.2 kg gross. It takes a 220Vac nominal input and charges from utility anywhere in a 90-280Vac window at 50Hz/60Hz, holding its own pure sine wave output to ±5%rms and synchronising with the incoming supply in line mode. Split-phase wiring gives 110/120Vac ±5% between HOT1-N or HOT2-N, while the HOT1-HOT2 terminal pair carries the full load. A 63A overcurrent protector guards the grid side, and air-switch overload protection tolerates 105%~150% load for 10 seconds and ≥150% for 5 seconds. Charging voltages are preset for AGM at 57.6V boost and 54.4V float, flooded cells at 58.4V and 55.2V, and lithium banks up to 61.0V; the inverter starts from 46V and shuts down at 43Vdc under light load. Operating range is 0°C~40°C. We are an authorised Felicity Solar distributor and supply the IVPS7548P2G1 from our own stock. Warranty: 2 Years.
