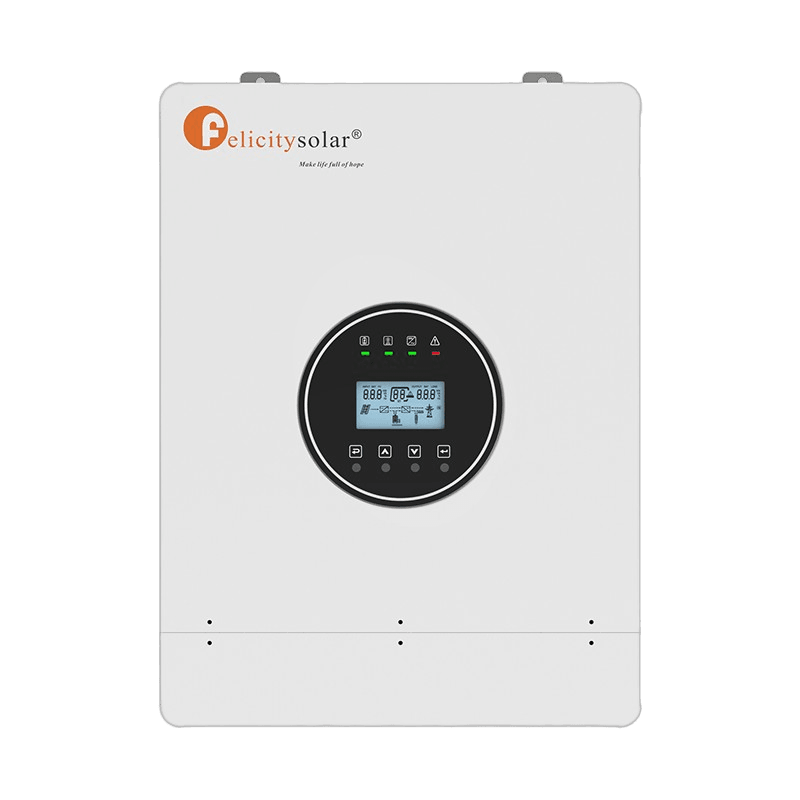

Felicity Solar IVEM3048-SALV 18. Inverter

Felicity Solar IVEM3048-SALV 3kW Single-Phase Off-Grid Solar Inverter

A 3 kW / 3 kVA single-phase off-grid inverter, the IVEM3048-SALV delivers 127 V at 60 Hz as a pure sine wave from a 48 V battery bank and takes up to 4 kW of PV on its single MPPT tracker.

Rated Output Power: 3 kW
Max Efficiency: 93 %
Max PV Input Power: 4 kW
Battery Voltage Range: 42-63 V

AED 1incl. VAT

In stock

Full Specifications Download datasheet (PDF)

Felicity Solar IVEM3048-SALV 3kW Single-Phase Off-Grid Solar Inverter features

3 kW rated output power alongside 3 kVA rated apparent power, single phase, with 2x rated surge held for 5 seconds

127 V AC output at 60 Hz as a pure sine wave, regulated to within 5%, at up to 30 A of output current

One MPPT tracker taking up to 4 kW of PV at 15 A, a 120-450 V working range, 500 V maximum PV voltage and 100 V start-up

48 V nominal battery bank across a 42-63 V window, charged at up to 60 A with a 56.4 V boost stage and a 54 V float stage

93% peak efficiency and above 95% in line mode, transferring in 20 ms on appliance mode or 10 ms on UPS mode

Wall-mounted IP21 chassis of 440 x 328 x 130 mm at 11.9 kg net, with LCD, built-in WiFi and RS485 BMS communication

About the Felicity Solar IVEM3048-SALV 3kW Single-Phase Off-Grid Solar Inverter

The Felicity Solar IVEM3048-SALV is a 3 kW single-phase off-grid solar inverter that delivers 127 V at 60 Hz from a 48 V battery bank, rated 3 kVA of apparent power, with one MPPT tracker accepting up to 4 kW and 15 A of PV across a 120-450 V working range. The -SALV build is the 127 V, 60 Hz edition: nominal AC input is 127 V, accepted from 65-140 V in appliance mode and 90-140 V in UPS mode, with transfer in 20 ms on appliance mode and 10 ms on UPS mode against a 50 ms general transfer time. Peak efficiency is 93% and line-mode efficiency exceeds 95%. Output is regulated to within 5% at up to 30 A, with 2x rated surge for 5 seconds. Charging runs to 60 A from solar or AC, boosting at 56.4 V and floating at 54 V across AGM, Flooded, Li-Ion and Self-Defined batteries over RS485. The wall-mounted IP21 chassis measures 440 x 328 x 130 mm at 11.9 kg net. The warranty term is 2 Years. We are an authorised Felicity Solar distributor and supply the IVEM3048-SALV from our own stock.

Specifications last updated 17 August 2026

Felicity Solar IVEM3048-SALV 3kW Single-Phase Off-Grid Solar Inverter full specifications

Electrical

AC Output Voltage	127 V
AC Wiring Mode	L+N+PE
Backup Rated Output Power	3 kW
Battery Inputs	1
Battery Type	AGM, Flooded, Li-Ion, Self-Defined
Battery Voltage Range	42-63 V
Bulk Charging Voltage	56.4 V
Charge Algorithm	Three-Stage: Boost CC, Boost CV, Float
Float Charging Voltage	54 V
High DC Input Recovery Voltage	56.4 V
High Frequency Disconnect	65 Hz
High Frequency Reconnect	63 Hz
High Line Disconnect Voltage	140 V
High Line Reconnect Voltage	135 V
Input Voltage Range	65-140 V
Input Voltage Range (UPS Mode)	90-140 V
Input Voltage Waveform	Sinusoidal (utility or generator)
Line Mode Efficiency	>95 %
Line Mode Output Waveform	Same As Input Waveform
Low DC Shutdown (<50% Load)	43 V
Low DC Shutdown (>50% Load)	42 V
Low Frequency Disconnect	47 Hz
Low Frequency Reconnect	49 Hz
Low Line Disconnect (Appliance Mode)	65 V
Low Line Disconnect (UPS Mode)	90 V
Low Line Reconnect (Appliance Mode)	70 V
Low Line Reconnect (UPS Mode)	95 V
Low-Battery Recovery (<50% Load)	47 V
Low-Battery Recovery (>50% Load)	46 V
MPPT Trackers	1
MPPT Voltage Range	120-450 V
Max AC Charge Current	60 A
Max AC Input Voltage	140 V
Max AC Pass-Through Current	40 A
Max Charging Current	60 A
Max Charging Voltage	60 V
Max Efficiency	93 %
Max Inverter/Rectifier Current	30 A
Max Output Current	30 A
Max PV Input Current	15 A
Max PV Input Power	4 kW
Max PV Voltage	500 V
Max Solar Charging Current	60 A
Motor Start Capable	Yes
Nominal AC Input Voltage	127 V
Nominal DC Input Voltage	48 V
Nominal Input Frequency	60 Hz
Output Frequency	60 Hz
Output Short-Circuit Protection	Yes
Output Voltage Regulation	5 %
Output Voltage Waveform	Pure Sine Wave
Overload Protection	Yes
Overload Trip Time (>105% Load)	10.5 s
Overload Trip Time (>150% Load)	5.5 s
PV Working Voltage Range	120-450 V
Pass-Through Without Battery	Yes
Phase	Single Phase
Protection	Overload Protection, Over Temperature Protection, Short Circuit Protection
Rated Apparent Output Power	3 kVA
Rated Output Power	3 kW
Short-Circuit Protection (Battery Mode)	Electronic Circuit
Short-Circuit Protection (Line Mode)	Circuit Breaker
Start-Up Voltage	100 V
Strings per MPPT	1
Surge Rating	2*rated (5s)
Transfer Time	50 ms
Transfer Time (Appliance Mode)	20 ms
Transfer Time (UPS Mode)	10 ms

Mechanical

BMS Communication	RS485
Display	LCD
Gross Weight	14.2 kg
Installation Style	Wall-Mounted
Monitoring Module	Built-In WiFi
Net Weight	11.9 kg
Package Dimensions	542 x 430 x 224 mm
Parallel Capability	No
Safety Standard	IEC 62109-1, IEC 62109-2
Topology	High-Frequency

Environmental

Cooling	Intelligent Air Cooling
IP Rating	IP21
Operating Temperature Range	-10 to 50 °C
Storage Temperature	-15 to 60 °C

Certifications

IEC 62109-1
IEC 62109-2

Frequently Asked Questions

127 V at 60 Hz, single phase, as a pure sine wave regulated to within 5% and wired L+N+PE. Maximum output current is 30 A, with 2x rated surge for 5 seconds, and the unit is rated 3 kW of real power and 3 kVA of apparent power.

4 kW is the maximum PV input power, gathered by one MPPT tracker on a single string at up to 15 A. The working voltage range is 120-450 V, maximum PV voltage is 500 V and start-up voltage is 100 V.

48 V nominal on one battery input, usable across a 42-63 V range, covering AGM, Flooded, Li-Ion and Self-Defined types. Three-stage charging reaches 60 A with a 56.4 V boost and a 54 V float, and RS485 carries BMS communication.

20 ms in appliance mode and 10 ms in UPS mode, against a 50 ms general transfer time, with the AC input window at 65-140 V for appliance mode and 90-140 V for UPS mode. The warranty term is 2 Years, and the unit is built to IEC 62109-1 and IEC 62109-2.
