Wide PV voltage input
range (60VDC-500VDC)

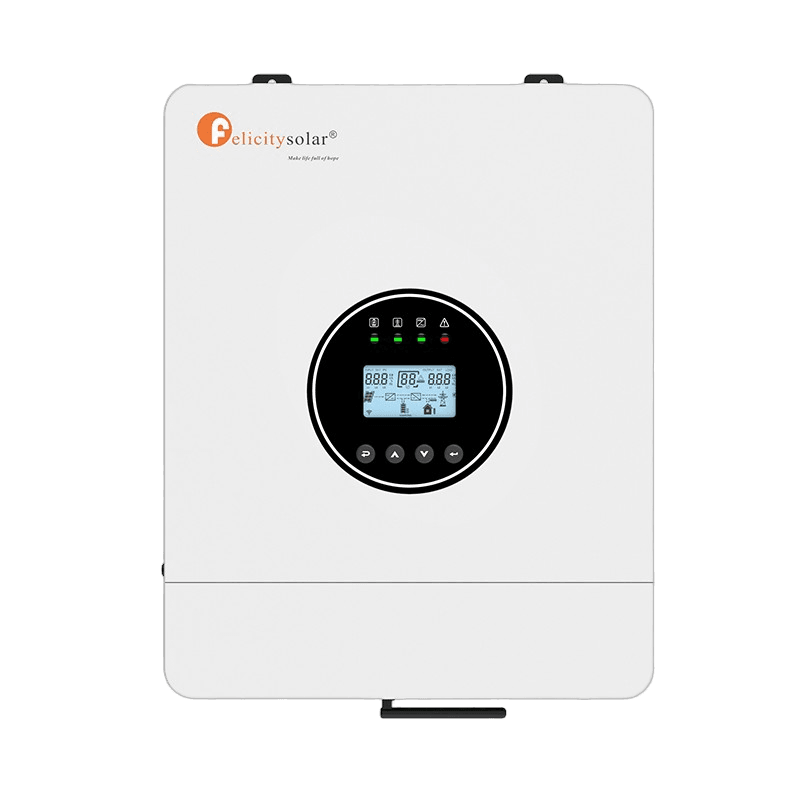

Felicity MJS
IVEM4024-II
Discover the Felicity Solar IVEM4024-II Inverter with 4000VA power, 230Vac output, and 500V max PV voltage for efficient solar energy conversion.
- Rated Output Power: 4000VA
- Max. Solar Charging Current: 120A
1,542 AEDincl. VAT
Features
Overview
The Felicity Solar IVEM4024-II inverter is designed to deliver reliable and efficient power conversion for your solar energy system. With a rated output power of 4000VA and a nominal output voltage of 230Vac, this inverter ensures optimal performance. Its adjustable frequency and wide PV voltage range make it a versatile choice for various solar applications.
Full specifications
Electrical
| Battery | Over current happen at DCDC circuit DC/DC soft start fail. Over |
|---|---|
| RS232 | +12V GND NC NC NC GND 0||||||0 Ollo |
| High Line Voltage Disconnect | 280Vac±7V |
| Low Line Voltage Disconnect | 170Vac±7V (UPS); 90Vac±7V (Appliances) |
| Output voltage | OP 0 230 Default: 60A 240V OP 01 240 Default: 30A OPF 02 50 CHC 07 |
| Battery Type | If inverter doesn't connect battery or |
| Battery Type Setting | 29.2V |
| Cut-off Voltage | program 9, 10 and 11. |
| Float Voltage | 54~65 |
| High DC Input Recovery | 30V±0.4V Unpacking and Inspection General Specifications |
| High Line Frequency Disconnect | 65±1Hz |
| Input Voltage | 28¬ |
| Input Voltage Range | 90~280Vac (For Home Appliances) ; 180~280Vac (For Computers) 4000VA |
| Low DC Input Shut-down | Load < 50% 21.0V least 5 minutes before wiring and checking. |
| Low Line Frequency Disconnect | 40±1Hz |
| Max AC Input Voltage | 280Vac |
| Max. AC Input Voltage | 280Vac |
| Max. Bypass Overload Current | 30A |
| Max. Charge Current | 120A |
| Max. Charging Current(PV+Grid) | 120A |
| Max. Input Current | 27A |
| Max. Inverter/Rectifier Current | 30A/4000W |
| Min. Startup Voltage | 60V |
| Nominal Input Frequency | 50Hz/60Hz ( |
| Output frequency configuration | 60Hz OPF 02 60 AC 03 APL AC 03 UPS Default: 27.0V bAt 08 66º 13 270 bAt 08 program 4 |
| Over Charge Protection | Yes |
| Over-Load Protection (SMPS load) | Load>200%,200ms / Load >150%,5.5s Load >120%, 7.5s / Load >105% 10.5s A |
| PV Array MPPT Voltage Range | 60Vdc 430Vdc |
| Parallel capability | No |
| Pass Through Without Battery | Yes |
| Power | point in program 12. CHS 0S SAU together. OP 02201 |
| RS485 | PIN 7 NC PIN 8 NC Lithium |
| Rated Output Power(VA) | 4000VA |
| Rated Output Power(W) | 4000W |
| Surge Rating | 2* |
| Cold Start Voltage | 23V |
| Nominal DC Input Voltage | 24V |
| Nominal Input Voltage | 230Vac Solar Charging & Grid Charging |
| Nominal Output Voltage | 230Vac+5% installation and operation of inverter must be carried out by The professional technicians who have received professional trainings and thoroughly familiar with |
| Output | 90V 170V 280V Input Voltage Battery Type Setting Flooded 29.2V 27V |
| Output Short Circuit Protection | Yes |
| Over-Load Protection | there is no strong electromagnetic interference Ensure installation site. the around devices electrical or caused by other electronic SMPS load |
| Peak Efficiency | 93% inverter are disconnected and wait for at least 5 minutes. |
| Rated Output Power | 4000VA Nominal Output Voltage Dependent on battery type; 4000W Max. Charge Current 120A |
| Nominal Output Frequency | 50±0.3Hz/60Hz±0.3Hz (Adjustable) |
| Output Voltage Waveform | Pure sine wave |
| Max. PV Open Circuit Voltage | 500V |
| PV Voltage Working Range | 60V-500V |
| Max. Input Power | 6000W |
| Max. Solar Charging Current | 120A |
| Battery Charging Current | Up to 120A |
| Charge Current Regulation | 10-120A (Adjustable unit is 1A) |
| Efficiency (Line Mode) | > 93% (Rated R load, battery full charged) |
Mechanical
| Installation | IVEM4024-II Safety Guidance 4000VA |
|---|---|
| Gross Weight | 11.9KG Kg |
| Product Size (D*W*H) | 430x310x120mm |
| Package Dimension (D*W*H) | 507x387x197mm |
Environmental
| Operating Temperature | -10C°~50C° |
|---|---|
| Range Storage Temperature | -15C°~60C° |
