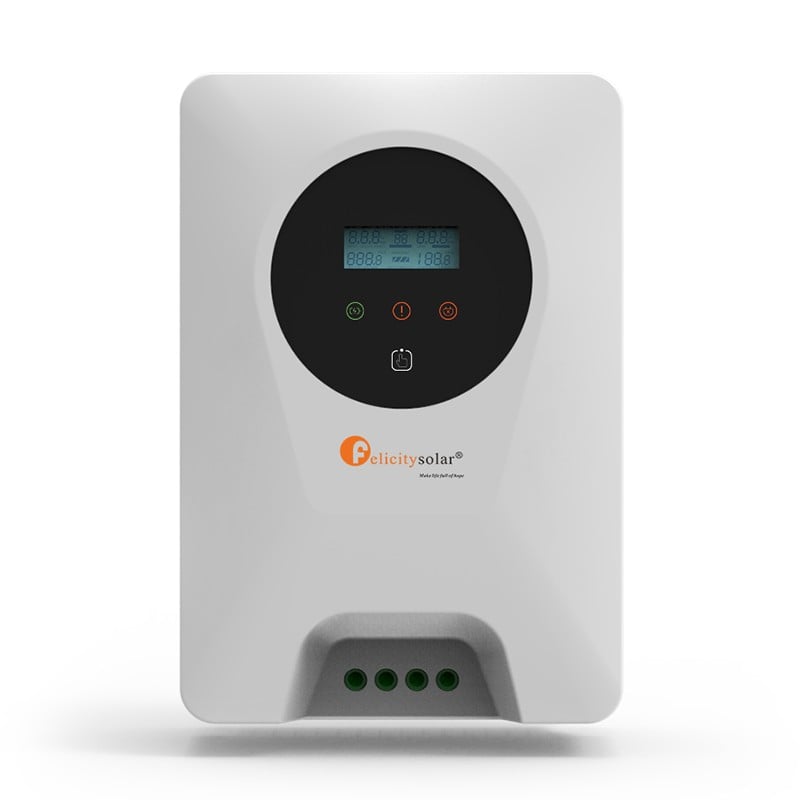

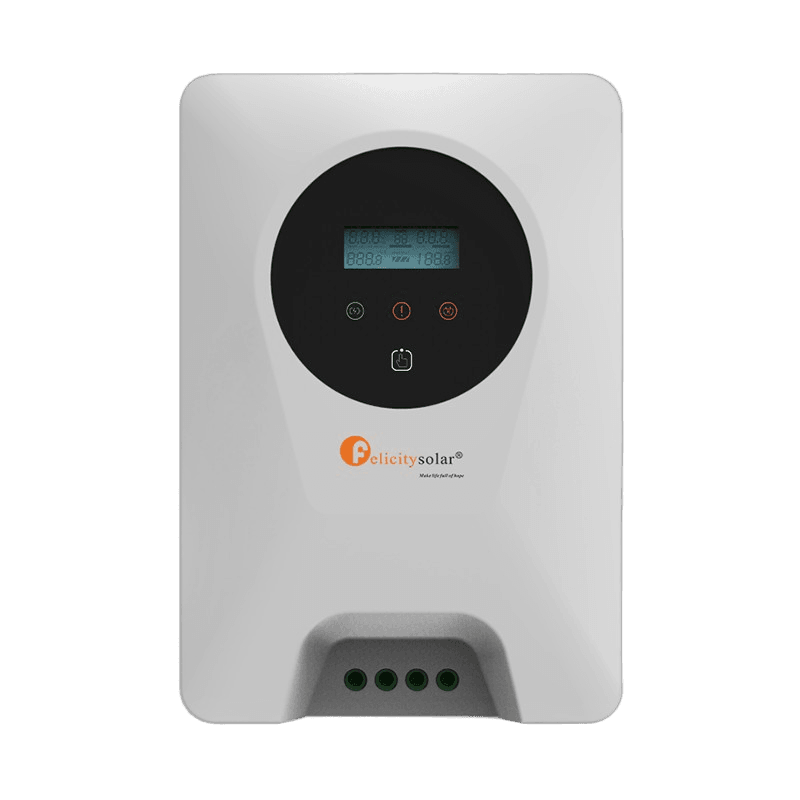

Felicity Solar SCCM15048
Felicity MJS

SCCM15048

Discover the Felicity Solar SCCM15048 charge controller with 150A max charging current and overcurrent protection for efficient solar energy management.

  • Maximum Charging Current: 150A
750 AEDincl. VAT
Full Specifications

Features

Intelligent Maximum Power Point

Tracking technology increases efficiency 25%–30%

Three-stage charging optimizes battery

performance

Maximum charging current up

to 150A

Maximum efficiency up to

98%

Automatic battery voltage detection

Supports lithium battery and

various lead-acid batteries, AGM and GEL battery

Overview

The Felicity Solar SCCM15048 charge controller is engineered for optimal solar energy management. With a maximum charging current of 150A and robust overcurrent protection, it ensures reliable performance and longevity for your solar power systems.

Full specifications

Electrical

Ingress ProtectionIP54
Maximum Charge Current150 Amps
Nominal System Voltage48V
Maximum Solar Input Voltage500V
PV Start-up Voltage120V
MPPT Voltage Range150-450Vdc
PV Limiting Current30A
Maximum Input Power9000W
Transient Surge Protection2* rated power for 5s
ProtectionsSolar high voltage disconnect / reconnect; battery high voltage disconnect / reconnect; high temperature disconnect / reconnect
Absorption Voltage57.6V
Float Voltage54.4V
Battery C.V. Charging Duration150 minutes
Charging Algorithm3-Step
Charging StagesBulk, Absorption, Float
Maximum Efficiency98 %
CommunicationRS485 & CAN (MODBUS); Bluetooth and WiFi built-in
Supported Battery TypeLithium, AGM, GEL, Flooded, user-defined

Mechanical

Product Size (W x H x D)422x370x140 mm
Outer Carton Size (W x H x D)485x464x198 mm
Net Weight9.7 kg
Gross Weight12 kg
IP RatingIP54
DisplayLCD (built-in)

Environmental

Ambient Temperature Range0°C to 55°C
Storage Temperature-25°C to 75°C
Humidity0%-90%RH (No condensing)
Overcurrent ProtectionYes
