Intelligent Maximum Power Point
Tracking technology increases efficiency 25%–30%

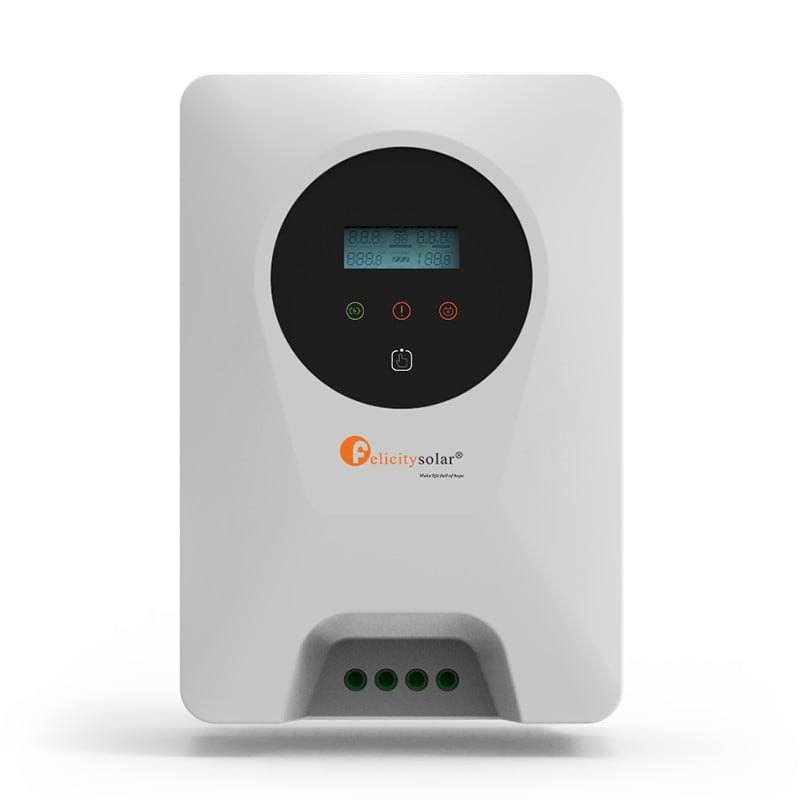

Felicity MJS
SCCM6048-II
Discover the Felicity Solar SCCM6048-II Charge Controller with 100V max PV input and 20A charging current, ideal for efficient solar systems.
- Maximum Charge Current: 60 A
- Maximum Efficiency: 98 %
- Nominal System Voltage: 12V/24V/48V (Auto)
300 AEDincl. VAT
Features
Overview
The Felicity Solar SCCM6048-II Charge Controller is designed to optimize your solar power system's performance. With a maximum PV input voltage of 100V and a charging current of 20A, this controller ensures efficient energy management. Its compact dimensions and wide operating temperature range make it a versatile choice for various installations.
Full specifications
Electrical
| Transient Surge Protection | 4500 Watts / port |
|---|---|
| Maximum Charge Current | 60 A |
| Nominal System Voltage | 12V/24V/48V (Auto) |
| Maximum Solar Input Voltage | 145 V |
| PV Array MPPT Voltage Range | 12 VDC: 15-130 VDC / 24 VDC: 30-130 VDC / 48 VDC: 60-130 VDC |
| Maximum Input Power | 12V - 825W / 24V - 1650W / 48V - 3300W |
| PV Start-up Voltage | 15V |
| Charging Algorithm | 3-Step |
| Charging Stages | Bulk, Absorption, Float |
| Temperature Compensation Coefficient | -5 mV/°C/cell @ 25°C ref |
| Communication | CAN (parallel), RS485 (BMS), WiFi (built-in) |
| Maximum Efficiency | 98 % |
Mechanical
| Product Size (W x H x D,mm) | 308x212x125 mm |
|---|---|
| Display | LCD (built-in) |
| Installation | Indoor wall-mount |
Environmental
| Humidity | 0%-90%RH(No condensing) |
|---|---|
| Storage Temperature | - 25°C to 75°C |
| Temperature compensation range | 0 °C to +50 °C |
| Ambient Temperature Range | 0°C to +55°C |
| Enclosure Rating | IP20 (Indoor & Vented) |
| Warranty | 2 Years |
