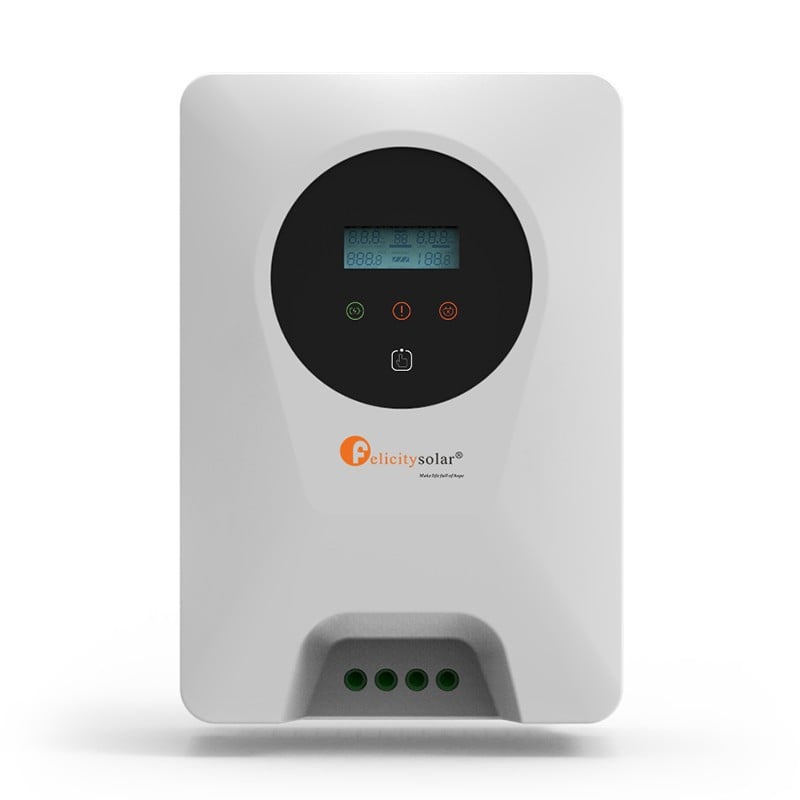

Felicity Solar SCCM10048-II
Felicity MJS

SCCM10048-II

Discover the Felicity Solar SCCM10048-II Charge Controller with 20A max charging current and 98% efficiency. Perfect for optimal solar energy management.

  • Maximum Charge Current: 100 A
  • Maximum Efficiency: 98 %
  • Nominal System Voltage: 12V/24V/48V (Auto)
500 AEDincl. VAT
Full Specifications

Features

Intelligent Maximum Power Point

Tracking technology increases efficiency 25%~30%

Compatible for PV systems

in 12V, 24V or 48V

Three-stage charging optimizes battery

performance

Automatic battery voltage detection

Integrated intelligent slot compatible

with MODBUS communication

Overview

Introducing the Felicity Solar SCCM10048-II Charge Controller, designed to enhance your solar energy system's performance. With a maximum charging current of 20A and an impressive efficiency of 98%, this controller ensures reliable and efficient energy management.

Full specifications

Electrical

Maximum Solar Input Voltage195V
Maximum Charge Current100 A
Nominal System Voltage12V/24V/48V (Auto)
PV Array MPPT Voltage Range12 VDC: 15-170 VDC / 24 VDC: 30-170 VDC / 48 VDC: 60-170 VDC
Maximum Input Power12V - 1375W / 24V - 2750W / 48V - 5500W
PV Start-up Voltage15V
Charging Algorithm3-Step
Charging StagesBulk, Absorption, Float
Temperature Compensation Coefficient-5 mV/°C/cell @ 25°C ref
CommunicationCAN (parallel), RS485 (BMS), WiFi (built-in)
Maximum Efficiency98 %
Transient Surge Protection4500 Watts / port

Mechanical

Product Size (W x H x D,mm)360x250x156 mm
DisplayLCD (built-in)
InstallationIndoor wall-mount

Environmental

Humidity0%-90%RH(No condensing)
Storage Temperature- 25°C to 75°C
Temperature compensation range0 °C to +50 °C
Ambient Temperature Range0°C to +55°C
Enclosure RatingIP20 (Indoor & Vented)
Warranty2 Years

Certifications

  • CE
  • ISO9001
