Intelligent Maximum Power Point
Tracking technology increases efficiency 25%–30%

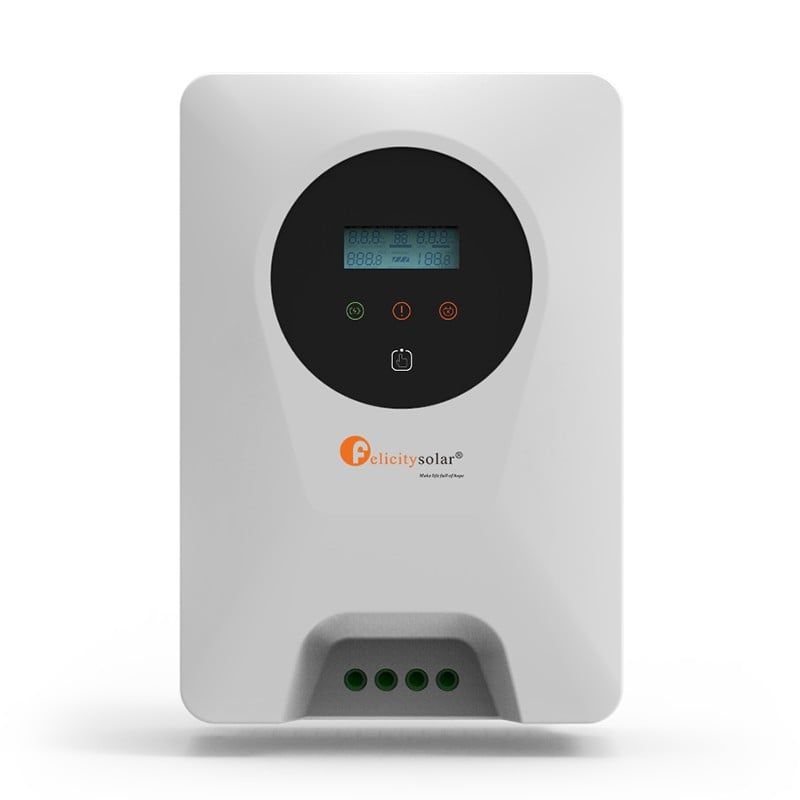

Felicity MJS
SCCM8048-II
Discover the Felicity Solar SCCM8048-II Charge Controller with a 20A max charging current and IP31 rating. Ideal for efficient solar energy management.
- Maximum Charge Current: 80 A
- Maximum Efficiency: 98 %
- Nominal System Voltage: 12V/24V/48V (Auto)
543 AEDincl. VAT
Features
Overview
The Felicity Solar SCCM8048-II Charge Controller is designed to optimize your solar energy system with a maximum charging current of 20A. Its robust design and IP31 rating ensure reliable performance in various environments, making it a perfect choice for both residential and commercial applications.
Full specifications
Electrical
| Transient Surge Protection | 4500 Watts / port |
|---|---|
| Maximum Charge Current | 80 A |
| Nominal System Voltage | 12V/24V/48V (Auto) |
| Maximum Solar Input Voltage | 145 V |
| PV Array MPPT Voltage Range | 12 VDC: 15-130 VDC / 24 VDC: 30-130 VDC / 48 VDC: 60-130 VDC |
| Maximum Input Power | 12V - 1100W / 24V - 2200W / 48V - 4400W |
| PV Start-up Voltage | 15V |
| Charging Algorithm | 3-Step |
| Charging Stages | Bulk, Absorption, Float |
| Temperature Compensation Coefficient | -5 mV/°C/cell @ 25°C ref |
| Communication | CAN (parallel), RS485 (BMS), WiFi (built-in) |
| Maximum Efficiency | 98 % |
Mechanical
| Product Size (W x H x D,mm) | 322x238x140 mm |
|---|---|
| Display | LCD (built-in) |
| Installation | Indoor wall-mount |
Environmental
| Humidity | 0%-90%RH(No condensing) |
|---|---|
| Storage Temperature | - 25°C to 75°C |
| Temperature compensation range | 0 °C to +50 °C |
| Ambient Temperature Range | 0°C to +55°C |
| Enclosure Rating | IP20 (Indoor & Vented) |
| Warranty | 2 Years |
Certifications
- CE
- ISO9001
