Equipped with a lithium
iron phosphate battery

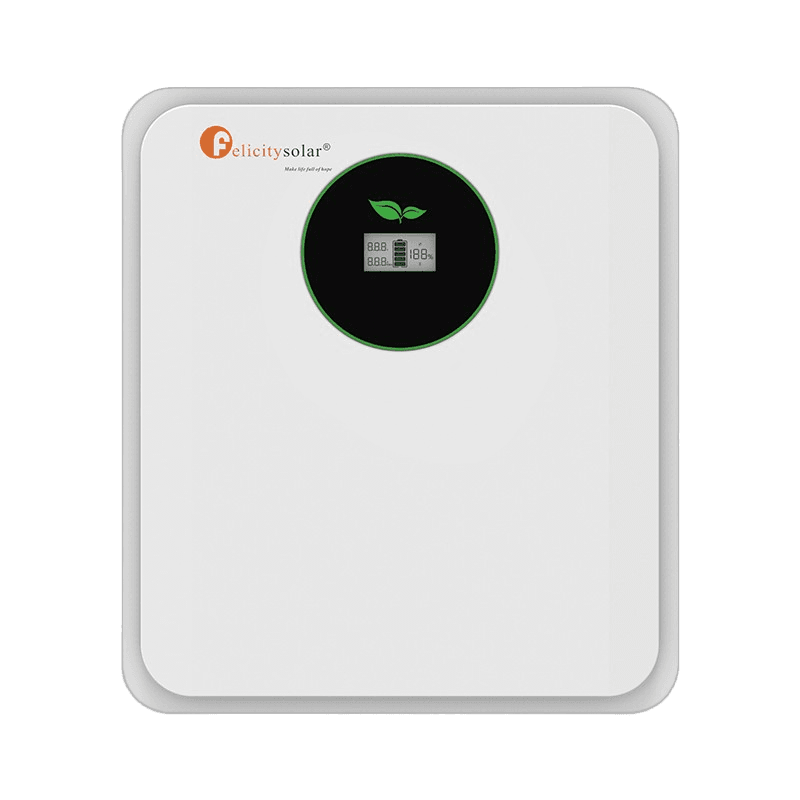

Felicity MJS
FLA24300WG2
Discover Felicity Solar's FLA24300WG2 Lithium Iron Phosphate Battery with 25.6V and 7.5kWh capacity, ideal for efficient energy storage.
- Nominal Voltage: 25.6V
- Energy Capacity: 7.5kWh
3,303 AEDincl. VAT
Features
Overview
Introducing the Felicity Solar FLA24300WG2, a cutting-edge Lithium Iron Phosphate battery designed for superior energy storage solutions. With a nominal voltage of 25.6V and an impressive energy capacity of 7.5kWh, this battery is engineered to meet the demands of modern energy systems.
Full specifications
Electrical
| Certification | UN38.3, CE-EMC IEC 62619 |
|---|---|
| Depth of Discharge (DOD) | ≥95% |
| Depth of Discharge(DOD) | ≥95% |
| Max. Continuous Charge/Discharge Current | 100A |
| Max.Charge/Discharge Power | 4480W |
| Max.Continuous Charge/Discharge Current | 175A |
| Peak Charge/Discharge Current(15s) | 300A |
| Protection | Built-in Smart BMS, Fuse |
| Scalability | Up to 15 units in parallel(112.5kWh) |
| Battery Type | LiFePO4 |
| Cut-off Voltage | 24V |
| Cycle Life | ≥ 6000 Cycles |
| Depth of Discharge | ≥95% DOD |
| Energy | 7.5kWh |
| Floating Charging Voltage | 28.8V |
| Max. Charging Current | 175A*N |
| Max. Charging Voltage | 28.8V |
| Nominal Voltage | 25.6V |
| Operating Voltage | 22.4-28.8V |
| Peak Charge/Discharge Current | 300A 15s |
| Energy Capacity | 7.5kWh |
| Max System Capacity | 112.5kWh |
| BMS Version | S515 |
| Communication Interface | CAN/RS485 |
Mechanical
| Display | LCD+LED |
|---|---|
| Installation | Wall-Mounted / Floor-Mounted |
| Package Dimension | 512x547×343mm |
Environmental
| Charging Temperature Range | 0-55°C |
|---|---|
| Discharging Temperature Range | -20-55°C |
| Over Voltage Protection | Yes |
| Over Current Protection | Yes |
| Working Temperature | -20°C to +55°C |
| Storage Temperature | 0°C to +35°C |
| Relative Humidity | 5% to 95% |
| Elevation | ≤2000m |
Certifications
- CE
- UN3480
- IEC60950
