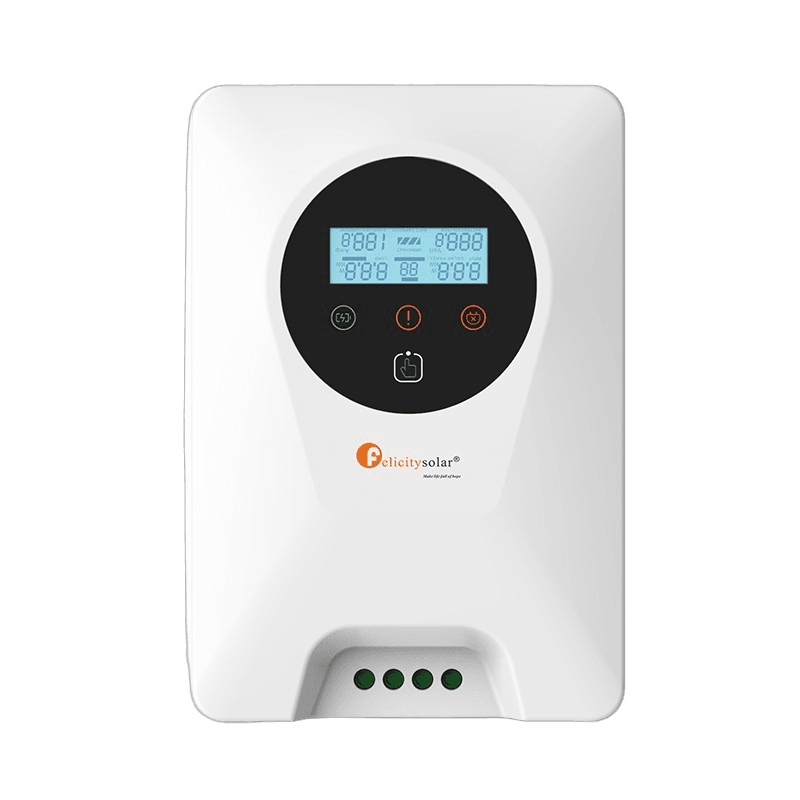

Felicity MJS
SCCM2024-II
20 A at 12/24 V MPPT solar charge controller with 3-stage charging.
- Maximum Battery Current: 20 Amps
- Nominal System Voltage: 12V/24V (Auto)
100 AEDincl. VAT
Features
Overview
The Felicity Solar SCCM2024-II is an MPPT solar charge controller rated at 20 A at 12/24 V. It tracks the array's maximum power point continuously and charges in three stages — bulk, absorption and float — with a -5 mV/°C/cell temperature compensation so the charge voltage follows the battery's own temperature.
Full specifications
Electrical
| Maximum Battery Current | 20 Amps |
|---|---|
| Nominal System Voltage | 12V/24V (Auto) |
| Maximum Solar Input Voltage | 95V |
| PV Array MPPT Voltage Range | 12 VDC: 15-80 VDC / 24 VDC: 30-80 VDC |
| Maximum Input Power | 12V - 280W / 24V - 550W |
| PV Start-up Voltage | 15V |
| Charging Algorithm | 3-Step |
| Charging stages | Bulk, Absorption, Float |
| Temperature compensation coefficient | -5 mV / °C / cell (25 °C ref.) |
| Temperature compensation range | 0 °C to +50 °C |
| Communication | CAN (parallel), RS485 (BMS), WiFi (built-in) |
| Maximum Efficiency | 98 % |
| Transient Surge Protection | 4500 Watts / port |
Mechanical
| Product Size (W x H x D) | 240x170x102 mm |
|---|---|
| Product Weight | 0.9 Kg |
| Display | LCD (built-in) |
| Installation | Indoor wall-mount |
Environmental
| Ambient Temperature Range | 0 °C to +55 °C |
|---|---|
| Storage Temperature | -25 °C to 75 °C |
| Humidity | 0~90% (No condensation) |
| Enclosure | IP20 (indoor & vented) |
| Enclosure Rating | IP20 (Indoor & Vented) |
| Warranty | 2 Years |
Certifications
- CE
