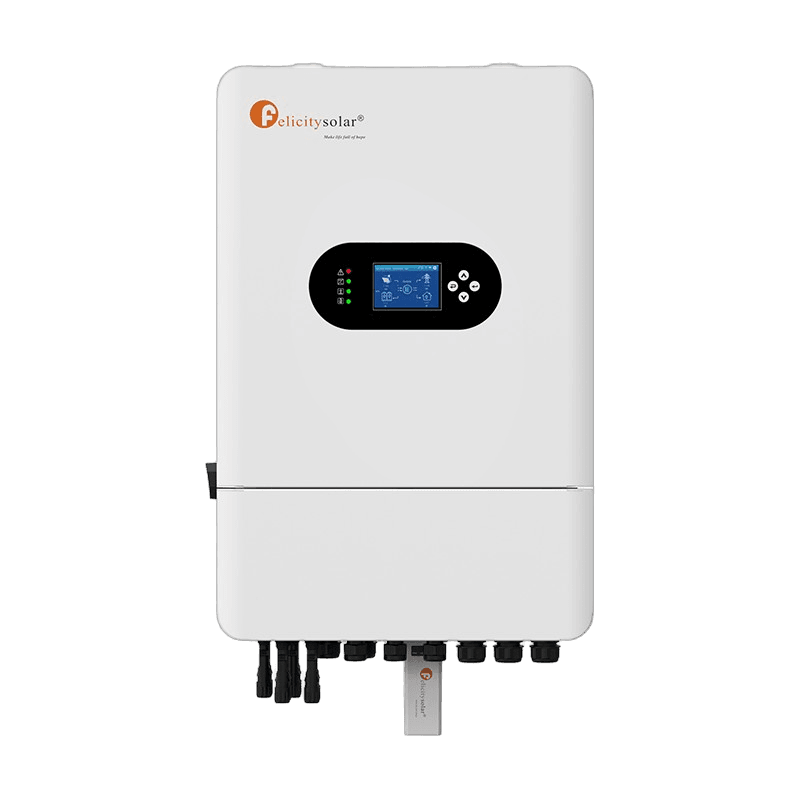

Felicity Solar IVBM10048P1G1

Felicity Solar IVBM10048P1G1 10kW Single-Phase Off-Grid Solar Inverter

The Felicity Solar IVBM10048P1G1 is a 10 kW (10 kVA) single-phase off-grid solar inverter delivering 230 V pure sine wave at up to 46 A from a 48 V battery bank. Its built-in MPPT controller takes 5.5 kW + 5.5 kW of PV and charges at up to 200 A.

  • Rated Output Power: 10 kW
  • Max Efficiency: 94.5 %
  • Max PV Input Power: 5.5+5.5 kW
  • Battery Voltage Range: 42-60 V
5,500 AEDincl. VAT

In stock

Full SpecificationsDownload datasheet (PDF)

Felicity Solar IVBM10048P1G1 10kW Single-Phase Off-Grid Solar Inverter features

10 kW / 10 kVA continuous single-phase output at 230 V, 50/60 Hz pure sine wave, up to 46 A

94.5% peak efficiency, and above 95% in line mode with utility present

Two PV strings on the built-in MPPT: 5.5 kW + 5.5 kW, 20 A + 20 A, 100-450 V tracking window

Low-frequency topology holds twice rated power for 5 seconds and is motor-start capable

48 V battery input (42-60 V) for AGM, flooded, lithium and self-defined packs, RS485 and CAN BMS, 200 A charging

IP65 wall-mounted, 24.3 kg, 10 ms UPS transfer and up to 6 units in parallel

About the Felicity Solar IVBM10048P1G1 10kW Single-Phase Off-Grid Solar Inverter

The Felicity Solar IVBM10048P1G1 is a 10 kW single-phase off-grid solar inverter that delivers 10 kVA continuously at 230 V, 50/60 Hz pure sine wave, up to 46 A, from a 48 V battery bank, reaching 94.5% peak efficiency and above 95% in line mode. Its low-frequency topology carries twice rated power for 5 seconds and is motor-start capable, so compressors, pumps and air conditioners start without tripping. The built-in MPPT charge controller accepts 5.5 kW + 5.5 kW of PV across two strings between 100 and 450 V and charges at up to 200 A, while a 90-280 V AC input, 65 A pass-through and 32 A generator input stand in as backup. Transfer takes 10 ms in UPS mode and 20 ms in appliance mode. AGM, flooded, lithium and self-defined batteries are supported over RS485 and CAN, with built-in Wi-Fi monitoring, an LCD and LED indicators. The IP65 wall-mounted cabinet weighs 24.3 kg, measures 490 x 189.2 x 525 mm, runs from 0 to 50 °C and parallels up to six units with a battery fitted. We supply it as an authorised Felicity Solar distributor.

Specifications last updated 23 July 2026

Felicity Solar IVBM10048P1G1 10kW Single-Phase Off-Grid Solar Inverter full specifications

Electrical

AC Output Voltage230 V
AC Wiring ModeL+N+PE
Backup Max Output Current46 A
Backup Rated Output Power10 kW
Battery Inputs1
Battery TypeAGM, Flooded, Li-Ion, Self-Defined
Battery Voltage Range42-60 V
Bulk Charging Voltage56.4 V
Charge AlgorithmThree-Stage: Boost CC, Boost CV, Float
Float Charging Voltage54 V
High DC Input Recovery Voltage56.4 V
High Frequency Disconnect65 Hz
High Frequency Reconnect63 Hz
High Line Disconnect Voltage280 V
High Line Reconnect Voltage270 V
Input Voltage Range90-280 V
Input Voltage Range (UPS Mode)170-280 V
Input Voltage WaveformSinusoidal (utility or generator)
Line Mode Efficiency>95 %
Line Mode Output WaveformSame As Input Waveform
Low DC Shutdown (<50% Load)43 V
Low DC Shutdown (>50% Load)42 V
Low Frequency Disconnect40 Hz
Low Frequency Reconnect42 Hz
Low Line Disconnect (Appliance Mode)90 V
Low Line Disconnect (UPS Mode)170 V
Low Line Reconnect (Appliance Mode)100 V
Low Line Reconnect (UPS Mode)180 V
Low-Battery Recovery (<50% Load)47 V
Low-Battery Recovery (>50% Load)46 V
MPPT Trackers1
MPPT Voltage Range100-450 V
Max AC Charge Current200 A
Max AC Input Voltage280 V
Max AC Pass-Through Current65 A
Max Charging Current200 A
Max Charging Voltage60 V
Max Efficiency94.5 %
Max Generator Input Current32 A
Max Inverter/Rectifier Current46 A
Max Output Current46 A
Max PV Input Current20+20 A
Max PV Input Power5.5+5.5 kW
Max PV Voltage450 V
Max Smart Load Output Current46 A
Max Solar Charging Current200 A
Motor Start CapableYes
Nominal AC Input Voltage230 V
Nominal DC Input Voltage48 V
Nominal Input Frequency50/60 Hz
Output Frequency50/60 Hz
Output Short-Circuit ProtectionYes
Output Voltage Regulation5 %
Output Voltage WaveformPure Sine Wave
Overload ProtectionYes
Overload Trip Time (>105% Load)10 s
Overload Trip Time (>150% Load)5 s
PV Working Voltage Range90-450 V
Pass-Through Without BatteryYes
PhaseSingle Phase
ProtectionOverload Protection, Over Temperature Protection, Short Circuit Protection
Rated Apparent Output Power10 kVA
Rated Output Power10 kW
Short-Circuit Protection (Battery Mode)Electronic Circuit
Short-Circuit Protection (Line Mode)Circuit Breaker
Start-Up Voltage160 V
Strings per MPPT2
Surge Rating2*rated (5s)
Transfer Time (Appliance Mode)20 ms
Transfer Time (UPS Mode)10 ms

Mechanical

BMS CommunicationRS485, CAN
Communication InterfaceRS232, RS485, CAN
DisplayLCD, LED
Gross Weight28.3 kg
Installation StyleWall-Mounted
Monitoring ModuleBuilt-In WiFi
Net Weight24.3 kg
Package Dimensions572 x 267 x 597 mm
Parallel Capability6 (battery required)
TopologyLow-Frequency

Environmental

CoolingIntelligent Air Cooling
IP RatingIP65
Operating Temperature Range0-50 °C
Storage Temperature-15 to 60 °C
