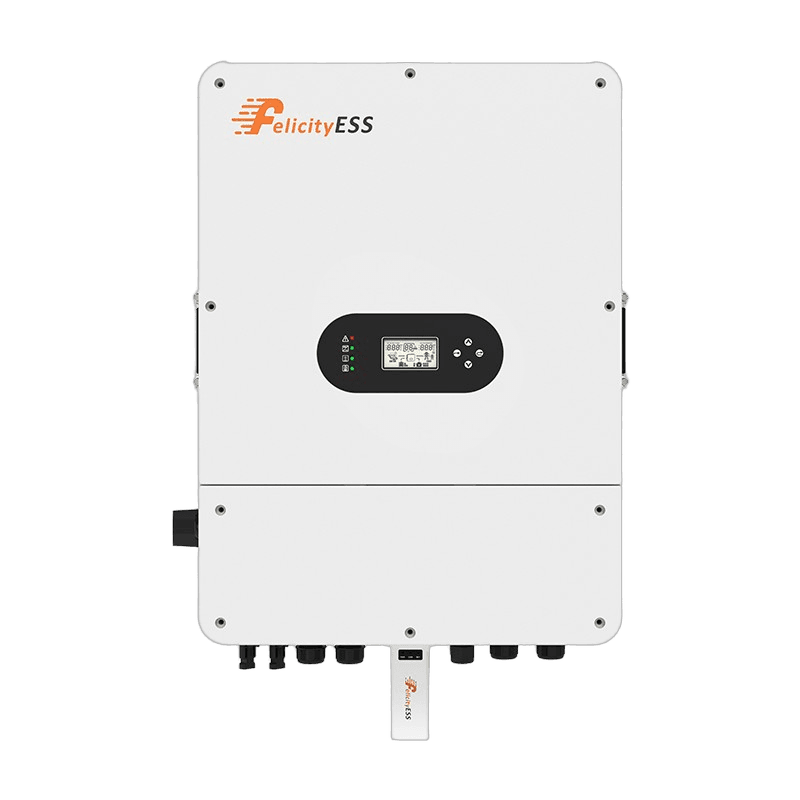

Felicity Solar T-REX-10KHP3G01 10kW Three-Phase Hybrid Solar Inverter

A three-phase hybrid inverter rated 10 kW, built around a single 180-580 V high-voltage battery input, 25 A of charge and discharge current, and 13 kW of recommended PV power on two MPPT trackers.

Rated Output Power: 10 kW
Max Efficiency: 97.6 %
Battery Voltage Range: 180-580 V
Phase: Three Phase

2,793 AEDincl. VAT

In stock

Full Specifications Download datasheet (PDF)

Felicity Solar T-REX-10KHP3G01 10kW Three-Phase Hybrid Solar Inverter features

One 180-580 V high-voltage battery input

The T-REX-10KHP3G01 carries a single battery input covering 180-580 V, taking Lead-Acid and Li-Ion banks over RS485 and CAN BMS communication.

25 A charging and 25 A discharging

Maximum charging current and maximum discharging current are both 25 A, AC charging is also 25 A, and maximum charge and discharge power is 10 kW.

13 kW of recommended PV on two MPPTs

Two MPPT trackers accept 15+15 A of PV input current from a 160 V start-up across a 200-850 V window, up to a 900 V maximum PV voltage and a 720 V nominal input.

10 kW backup at 30 A with a 20 ms transfer

Backup rated power is 10 kW at up to 30 A, three-phase on 3L+N+PE wiring at 230 V, with a 20 ms transfer time and THD held below 3%.

97.6% maximum efficiency, 99.9% MPPT tracking

Maximum efficiency is 97.6%, European efficiency 97% and MPPT efficiency 99.9%, with a power factor above 0.99 adjustable from 0.8 leading to 0.8 lagging.

35.3 kg IP65 chassis, 10 units in parallel

The wall-mounted IP65 chassis is naturally cooled, weighs 35.3 kg net and 39.7 kg gross, runs from -25 to 60 °C with derating above 45 °C, and parallels up to 10 units.

About the Felicity Solar T-REX-10KHP3G01 10kW Three-Phase Hybrid Solar Inverter

The Felicity Solar T-REX-10KHP3G01 is a 10 kW three-phase hybrid solar inverter built around a single 180-580 V high-voltage battery input. It charges and discharges that bank at up to 25 A for 10 kW of charge and discharge power, tracks solar on two MPPTs across 200-850 V, and converts at up to 97.6% maximum efficiency. Array sizing runs to 13 kW of recommended PV power at 15+15 A of input current, capped by a 900 V maximum PV voltage, from a 720 V nominal PV input and a 160 V start-up. On the grid side the T-REX-10KHP3G01 wires 3L+N+PE at 230 V per phase, accepts 184-264.5 V at up to 30 A, delivers up to 18 A, and hands over to a 10 kW backup circuit rated 30 A in 20 ms. The wall-mounted IP65 chassis is naturally cooled, weighs 35.3 kg net and 39.7 kg gross, ships in a 635 x 533 x 315 mm package and parallels up to 10 units. Certified to IEC 62109-1, IEC 62109-2 and IEC 62040-1. We are an authorised Felicity Solar distributor and supply it with a 2 Years warranty.

Specifications last updated 23 July 2026

Felicity Solar T-REX-10KHP3G01 10kW Three-Phase Hybrid Solar Inverter full specifications

Electrical

AC Output Line Voltage	400 V
AC Output Voltage	230 V
AC Rated Output Current	14.5 A
AC Wiring Mode	3L+N+PE
Backup Max Output Current	30 A
Backup Rated Output Power	10 kW
Battery Inputs	1
Battery Type	Lead-Acid, Li-Ion
Battery Voltage Range	180-580 V
Charge Algorithm	Self-Adaption to BMS
European Efficiency	97 %
Grid Frequency Range (50 Hz)	45-55 Hz
Grid Frequency Range (60 Hz)	55-65 Hz
Grid Regulation	VDE-AR-N 4105, G99/1, EN50549-1, CEI 0-21, AS 4777.2, NRS 097-2-1
Ground Fault Current Monitoring	Yes
Input Voltage Range	184-264.5 V
MPPT Efficiency	99.9 %
MPPT Full-Load Voltage Range	450-850 V
MPPT Trackers	2
MPPT Voltage Range	200-850 V
Max AC Charge Current	25 A
Max AC Input Current	30 A
Max AC Output Power	10 kW
Max AC Pass-Through Current	30 A
Max Charge/Discharge Power	10 kW
Max Charging Current	25 A
Max Discharging Current	25 A
Max Efficiency	97.6 %
Max Output Current	18 A
Max PV Input Current	15+15 A
Max PV Voltage	900 V
Max Recommended PV Power	13 kW
Max Short-Circuit Current	18+18 A
Nominal AC Input Line Voltage	400 V
Nominal AC Input Voltage	230 V
Nominal Input Frequency	50/60 Hz
Output Frequency	50/60 Hz
Output Short-Circuit Protection	Yes
Overload Protection	Yes
Overvoltage Category (AC)	III
Overvoltage Category (DC)	II
PV Working Voltage Range	160-900 V
Phase	Three Phase
Power Factor	>0.99
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
Protection	Output Over Current Protection, Output Over Power Protection, Output Shorted Protection, Anti-islanding Protection, GFCI Protection, Insulation Resistor Detection
Rated Apparent Output Power	10 kVA
Rated Output Power	10 kW
Rated PV Input Voltage	720 V
Start-Up Voltage	160 V
Strings per MPPT	1
Total Harmonic Distortion	<3 %
Transfer Time	20 ms

Mechanical

BMS Communication	RS485, CAN
Communication Interface	RS232, RS485
Display	LCD, LED
Gross Weight	39.7 kg
Installation Style	Wall-Mounted
Monitoring Module	WiFi/GPRS
Net Weight	35.3 kg
Package Dimensions	635 x 533 x 315 mm
Parallel Capability	10
Safety Standard	IEC 62109-1, IEC 62109-2, IEC 62040-1
Topology	Non-Isolated

Environmental

Cooling	Nature
IP Rating	IP65
Operating Altitude	2000 m
Operating Temperature Range	-25 to 60 (>45 derating) °C
Relative Humidity	0-100 %

Certifications

IEC 62109-1
IEC 62109-2
IEC 62040-1

Frequently Asked Questions

180-580 V. The T-REX-10KHP3G01 has one battery input covering that high-voltage window and takes Lead-Acid and Li-Ion banks, with RS485 and CAN for BMS communication. Maximum charging current and maximum discharging current are both 25 A, AC charging is also 25 A, and maximum charge and discharge power is 10 kW.

13 kW is the maximum recommended PV power. Two MPPT trackers accept 15+15 A of PV input current from a 160 V start-up voltage across a 200-850 V tracking window, with a 720 V nominal PV input and a 900 V maximum PV voltage. MPPT efficiency is 99.9%, maximum efficiency 97.6% and European efficiency 97%.

20 ms is the transfer time. Backup rated power is 10 kW at up to 30 A, three-phase at 230 V on 3L+N+PE wiring, with THD below 3%, a power factor above 0.99, output over-current, over-power and short-circuit protection, anti-islanding protection, GFCI protection, insulation resistor detection and ground fault current monitoring.

35.3 kg net and 39.7 kg gross, shipping in a 635 x 533 x 315 mm package. The non-isolated chassis is wall-mounted, IP65-rated and naturally cooled, works from -25 to 60 °C with derating above 45 °C, in 0-100% relative humidity up to 2000 m of altitude, and carries an LCD and LED display with RS232 and RS485 interfaces. Up to 10 units can be paralleled.
