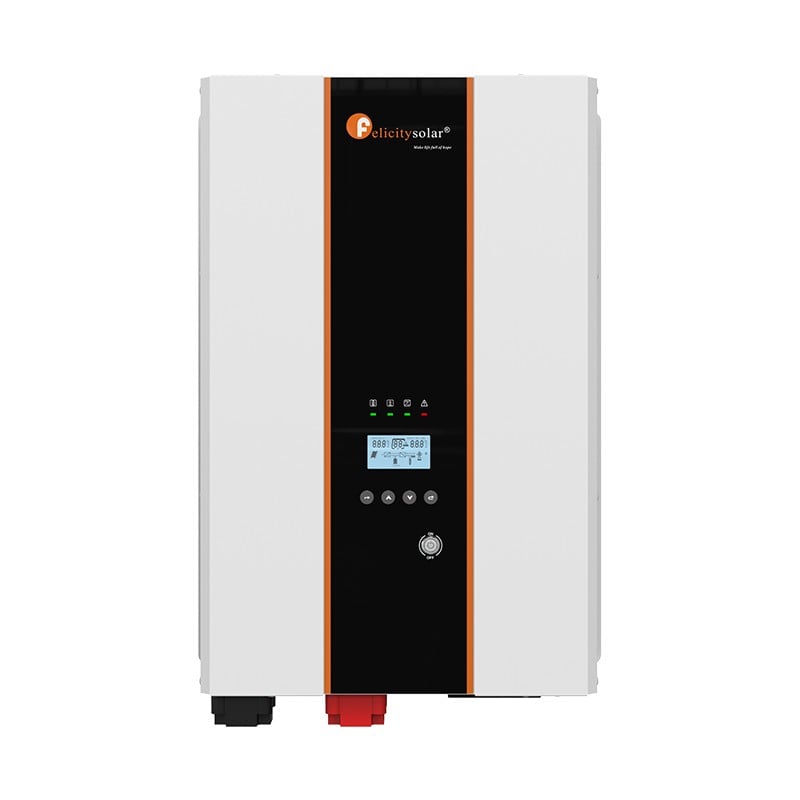

Felicity Solar IVPS/IVPM Series
Felicity MJS

IVPS5024

Discover Felicity Solar IVPS/IVPM Series Inverters with 2500VA/2000W power, 220Vac output, and 12V DC input for efficient energy solutions.

  • Rated Output Power (Va): 5000VA
  • Rated Output Power (W): 4000W
1,200 AEDincl. VAT
Full Specifications

Features

Bypass charging function

High charging current

Wide range of AC

input voltage

Battery self-defined settings

50/60HZ compatible

Intelligent adjustment of over-discharge

voltage

Overview

The Felicity Solar IVPS/IVPM Series Inverters are designed to deliver reliable and efficient power solutions. With a rated output power of 2500VA/2000W and a nominal output voltage of 220Vac, these inverters are ideal for various energy needs. Compatible with AGM battery types, they ensure optimal performance and longevity.

Full specifications

Electrical

Input Voltage Range90-280Vac
Rated Output Power (VA)5000VA
Rated Output Power (W)4000W
Nominal DC Input Voltage24V
Input Voltage WaveformSinusoidal (utility or generator)
Nominal Input Voltage220Vac
Low Line Disconnect170±7Vac (UPS) / 90±7Vac (APL)
Low Line Re-connect AC Input Range180±7Vac (UPS) / 100±7Vac (APL)
High Line Disconnect280±7Vac
High Line Re-connect270±7Vac
Max AC Input Voltage280Vrms
Nominal Input Frequency50Hz/60Hz
Low Line Frequency Disconnect40±1Hz
Low Line Frequency Re-connect42±1Hz
High Line Frequency Disconnect65±1Hz
High Line Frequency Re-connect63±1Hz
Efficiency (Line mode)≥95% (rated R load, battery fully charged)
Transfer Time (AC to DC)15ms (typical)
Transfer Time (DC to AC)15ms (typical)
Pass Through Without BatteryNo
Max Bypass Overload CurrentAC 63A
Input Voltage Range (utility charge)90~280Vac
Max Charge Current50A
Charge Current Regulation0A~50A
Charger Short CircuitAC 63A
Over Charge ProtectionYes
Output Voltage WaveformPure sine wave
Nominal Output Voltage220Vac±5%
Nominal Output Frequency (Hz)50±0.3Hz / 60±0.3Hz (adjustable)
Output Voltage Regulation±5%rms
Peak Efficiency90%
Over-Load Protection5s@≥150% load; 10s@105%~150% load SMPS load
Surge Rating10000VA for 5 seconds
Capable of Starting Electric MotorYes
Output Short Circuit ProtectionYes
Cold Start Voltage23V
Low Battery Recovery23.5V (load < 50%) / 23V (load ≥ 50%)
Low DC Input Shut-down21.5V (load < 50%) / 21V (load ≥ 50%)
High DC Input Recovery31.0±0.4V
Boost Charging Voltage (AGM)28.8V
Float Charging Voltage (AGM)27.2V
Boost Charging Voltage (Flooded)29.2V
Float Charging Voltage (Flooded)27.6V
Self-Defined Charging Voltage (max)31.5V

Mechanical

Package Dimension607x540x290mm

Environmental

Operating temperature0°C-40°C
Storage temperature-15°C~60°C
Over-Load Protection (Smps Load)5s@≥150% load; 10s@105%~150% load
