Pure sine wave
220 Vac output, safe for motors and electronics.
Felicity MJS
IVPM10048
10,000 VA / 8,000 W at 48 V off-grid solar inverter, optional built-in MPPT.
- Rated Output Power: 10000 VA
- Nominal DC Input Voltage: 48V
4,590 AEDincl. VAT
Features
Overview

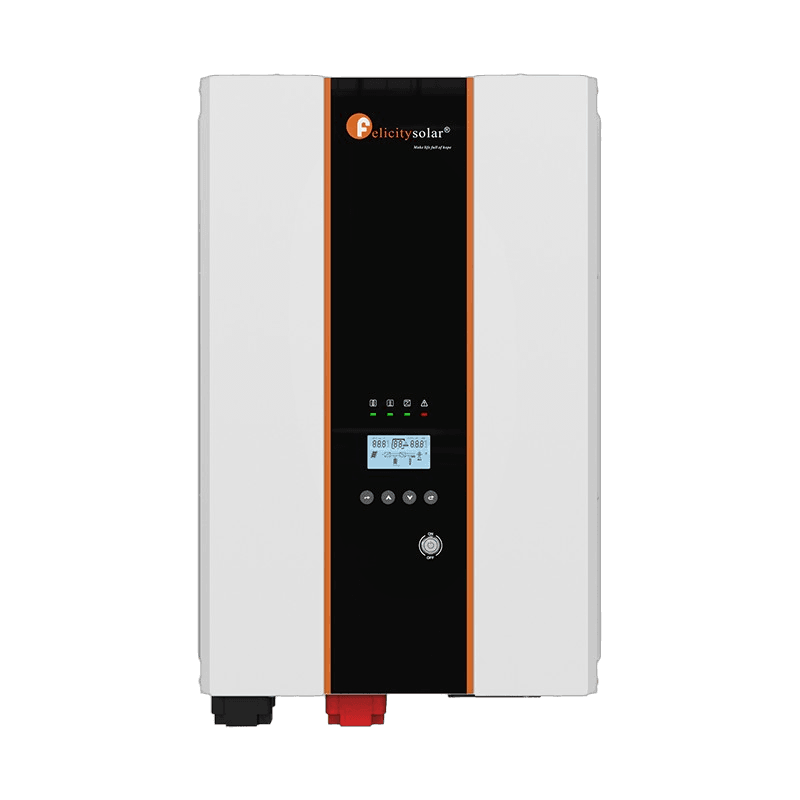

The Felicity Solar IVPM10048 is an off-grid inverter-charger rated at 10,000 VA / 8,000 W at 48 V, running from a 48 V bank. It produces a pure sine wave at 220 Vac and transfers between utility and battery in about 15 ms. Felicity's datasheet lists solar charging alongside utility charging for this series, with the built-in MPPT controller as an option.
Full specifications
Electrical
| Efficiency(Line Mode) | 95% (Rated R Load, Battery Full Charged) |
|---|---|
| Max. AC Input Voltage | 280Vrms |
| Max. Bypass Overload Current | AC 63A |
| Max. Charge Current | 80A |
| Max. Charging current (Utility + Solar) | 200A |
| Max. Input Power | 6600W |
| Max. PV Open Circuit Voltage | 170Vdc |
| Max. Solar Charging Current | 120A |
| Nominal Input Frequency | 50Hz/60Hz |
| Nominal Output Frequency(Hz) | 50±0.3Hz/60Hz±0.3Hz(Adjustable) |
| Over Charge Protection | Yes |
| Rated Output Power(VA) | 10000VA |
| Rated Output Power (VA) | 10000VA |
| Rated Output Power (W) | 8000W |
| Nominal DC Input Voltage | 48V |
| Max Charge Current | 80A |
| Charge Current Regulation | 0A~80A |
| Max Bypass Overload Current | AC 63A |
| Charger Short Circuit | AC 63A |
| Output Voltage Waveform | Pure sine wave |
| Nominal Output Voltage | 220Vac ±5% |
| Nominal Output Frequency | 50±0.3Hz / 60±0.3Hz (Adjustable) |
| Output Voltage Regulation | ±5% rms |
| Peak Efficiency | 90% |
| Efficiency (Line mode) | ≥95% (rated R load, battery fully charged) |
| Surge rating | 2× rated power for 5 seconds |
| Over-Load Protection (SMPS load) | 5s @ ≥150% load; 10s @ 105%~150% load |
| Transfer Time | 15 ms typical, both directions |
| Nominal Input Voltage | 220Vac |
| Input Voltage Range | 90~280 Vac |
| Pass Through Without Battery | No |
| Battery Type Setting | AGM, Flooded or Self-defined |
Mechanical
| Inverter Topology | Low-frequency (transformer-based) |
|---|---|
| Package Dimension | 670x470x355mm |
| Max Charging Current (Utility + Solar) | 200A |
Environmental
| Operating temperature | 0°C ~ 40°C |
|---|---|
| Storage temperature | -15°C ~ 60°C |
Certifications
- CE
