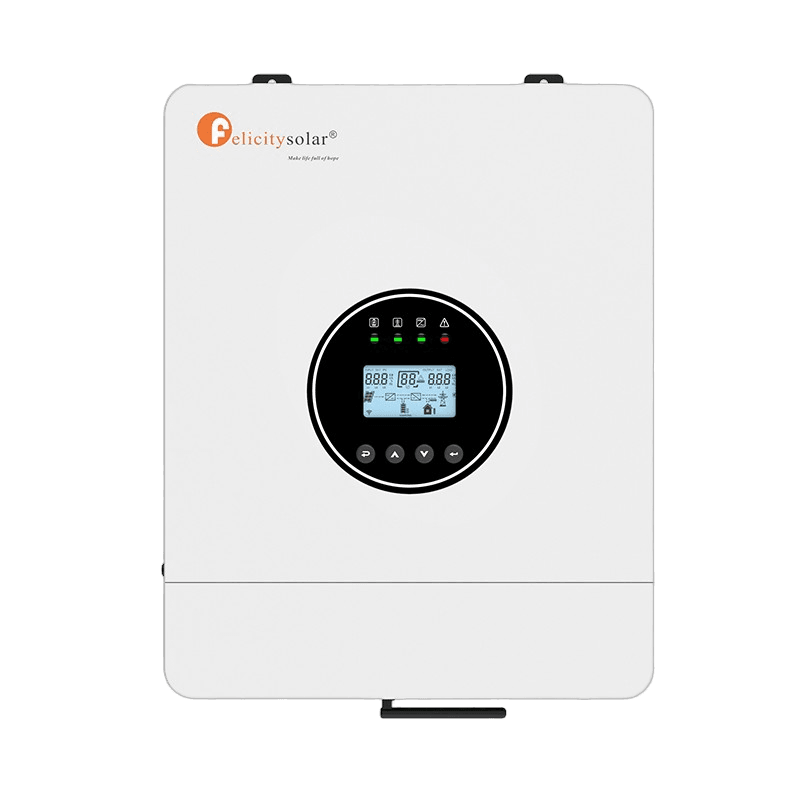

Felicity Solar IVAM6048P1G1 6kW Single-Phase Off-Grid Solar Inverter

The Felicity Solar IVAM6048P1G1 is a 6 kW single-phase off-grid solar inverter built around a 48 V battery bank, taking up to 9.6 kW of PV across two MPPT trackers. It peaks at 97.6% efficiency and charges or discharges at up to 135 A.

Rated Output Power: 6 kW
Max Efficiency: 97.6 %
Max PV Input Power: 9.6 kW
Battery Voltage Range: 40-60 V

3,000 AEDincl. VAT

In stock

Full Specifications Download datasheet (PDF)

Felicity Solar IVAM6048P1G1 6kW Single-Phase Off-Grid Solar Inverter features

6 kW rated and 6 kVA apparent output at 230 V single phase, with 26.1 A maximum output current and twice rated power for 10 seconds

Two MPPT trackers take 9.6 kW of PV input (12 kW array access) at up to 500 V, 20+20 A and 2+2 strings, tracking from 90 V to 425 V

One 48 V battery input with a 40-60 V working range and 135 A maximum charge and discharge current, for lead-acid or Li-Ion packs

97.6% maximum efficiency, 96.5% European efficiency and MPPT efficiency above 99%

Charge algorithm self-adapts to the battery BMS over RS485 or CAN, with LCD and LED display and optional WiFi/LAN monitoring

IP65 enclosure, 13.5 kg net weight, 320 x 435 x 183.2 mm, intelligent air cooling and under 55 dB noise, with up to 6 units in parallel

About the Felicity Solar IVAM6048P1G1 6kW Single-Phase Off-Grid Solar Inverter

The Felicity Solar IVAM6048P1G1 is a 6 kW single-phase off-grid solar inverter for 48 V battery banks. It delivers 6 kW (6 kVA) at 230 V and 50/60 Hz as a pure sine wave with under 3% total harmonic distortion, accepts up to 9.6 kW of PV across two MPPT trackers, and reaches 97.6% peak efficiency. Each tracker works from 90 V to 425 V, 300-425 V at full load, starts up at 120 V and takes 20 A per input, so a 500 V array can be split across 2+2 strings, up to 12 kW of access power. On the battery side the unit charges and discharges at up to 135 A over a 40-60 V window, supports lead-acid and Li-Ion, and self-adapts its charge algorithm to the pack BMS over RS485 or CAN. Maximum output current is 26.1 A with twice rated power for 10 seconds, and up to 6 units run in parallel. The IP65 enclosure weighs 13.5 kg net and measures 320 x 435 x 183.2 mm. We are an authorised Felicity Solar distributor and supply the IVAM6048P1G1 from our own stock.

Specifications last updated 23 March 2026

Felicity Solar IVAM6048P1G1 6kW Single-Phase Off-Grid Solar Inverter full specifications

Electrical

AC Output Voltage	230 V
AC Wiring Mode	L+N+PE
Backup Rated Output Power	6 kW
Battery Inputs	1
Battery Type	Lead-Acid, Li-Ion
Battery Voltage Range	40-60 V
Charge Algorithm	Self-Adaption to BMS
DC Switch	Yes
European Efficiency	96.5 %
Ground Fault Current Monitoring	Yes
MPPT Efficiency	>99 %
MPPT Full-Load Voltage Range	300-425 V
MPPT Trackers	2
MPPT Voltage Range	90-425 V
Max AC Output Power	6 kW
Max AC Pass-Through Current	35 A
Max Charge/Discharge Power	6 kW
Max Charging Current	135 A
Max Discharging Current	135 A
Max Efficiency	97.6 %
Max Output Current	26.1 A
Max PV Access Power	12 kW
Max PV Input Current	20+20 A
Max PV Input Power	9.6 kW
Max PV Voltage	500 V
Max Short-Circuit Current	27+27 A
Nominal AC Input Voltage	230 V
Nominal DC Input Voltage	48 V
Nominal Input Frequency	50/60 Hz
Output Frequency	50/60 Hz
Output Short-Circuit Protection	Yes
Output Voltage Waveform	Pure Sine Wave
Overload Protection	Yes
Overvoltage Category (AC)	III
Overvoltage Category (DC)	II
PV Working Voltage Range	90-500 V
Phase	Single Phase
Protection	DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, Thermal Protection, DC Terminal Insulation Impedance Monitoring, DC Component Monitoring, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional), Power Network Monitoring, Earth Fault Detection, DC Input Switch, Overvoltage Load Drop Protection
Rated Apparent Output Power	6 kVA
Rated Output Power	6 kW
Rated PV Input Voltage	370 V
Start-Up Voltage	120 V
Strings per MPPT	2+2
Surge Protection Level (AC)	II
Surge Rating	2*rated (10s)
Total Harmonic Distortion	<3 %

Mechanical

BMS Communication	RS485, CAN
Communication Interface	RS485, CAN
Display	LCD, LED
Gross Weight	15.4 kg
Monitoring Module	WiFi/LAN (optional)
Net Weight	13.5 kg
Package Dimensions	412 x 532 x 270 mm
Parallel Capability	6
Safety Standard	IEC/EN 62109-1, IEC/EN 62109-2
Topology	Non-Isolated

Environmental

Cooling	Intelligent Air Cooling
IP Rating	IP65
Noise Level	<55 dB
Operating Altitude	3000 m
Operating Temperature Range	-40 to 60 (>45 derating) °C
Relative Humidity	0-100 %

Certifications

IEC 62109-1
EN 62109-1
IEC 62109-2
EN 62109-2

Frequently Asked Questions

It is a 6 kW single-phase off-grid solar inverter for 48 V battery systems. It outputs 230 V at 50/60 Hz as a pure sine wave with under 3% total harmonic distortion, delivers up to 26.1 A, and sustains twice its rated power for 10 seconds.

Its two MPPT trackers accept up to 9.6 kW of PV input power and 12 kW of array access power at a maximum 500 V, with 2+2 strings and 20+20 A of input current. MPPT tracking runs from 90 V to 425 V, 300-425 V at full load, and the inverter starts up at 120 V.

It has one 48 V battery input with a 40-60 V operating window and supports both lead-acid and Li-Ion packs. Charge and discharge currents reach 135 A, and the charge algorithm self-adapts to the battery BMS over RS485 or CAN.

Up to 6 units can run in parallel. The IP65 enclosure with intelligent air cooling operates from -40 to 60 C, derating above 45 C, at altitudes to 3000 m and under 55 dB of noise. It weighs 13.5 kg net and measures 320 x 435 x 183.2 mm.
