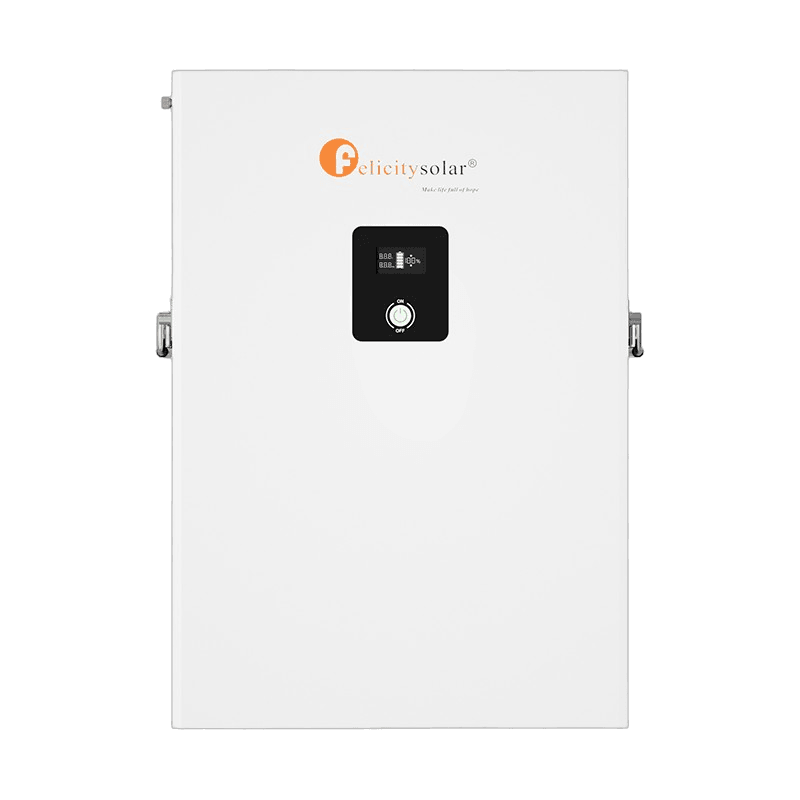

Felicity Solar LPBA24100WG1 25.6V 2.56kWh LiFePO4 Battery

A 27 kg LiFePO4 module storing 2.56 kWh at 100 Ah, peaking at 150 A over 15 seconds and reporting over CAN2.0, RS485, Wi-Fi and Bluetooth.

Nominal Energy: 2.56 kWh
Nominal Capacity: 100 Ah
Nominal Voltage: 25.6 V
Cycle Life: >6000

AED 2,500incl. VAT

In stock

Full Specifications Download datasheet (PDF)

Felicity Solar LPBA24100WG1 25.6V 2.56kWh LiFePO4 Battery features

2600-3100 W for 15 seconds

short-duration output well above what the 25.6 V module carries continuously

100-120 A continuous within a 22.4-28.8 V window

with a 150 A peak charge and discharge current over the same 15 seconds

81.92 kWh from 32 units in parallel

each LPBA24100WG1 stores 2.56 kWh at 100 Ah and a nominal 25.6 V

Built-in Smart BMS working with a fuse

cut-off at 22.4 V, 28.8 V maximum charging voltage and 95% depth of discharge

Four interfaces: CAN2.0, RS485, Wi-Fi and Bluetooth

monitoring for the 25.6 V pack, with an LED display and an IP21 rating

27 kg, wall-mounted or floor-mounted

ships at 31 kg in a 472 x 261 x 427 mm carton and stores from -20 to 45 °C

About the Felicity Solar LPBA24100WG1 25.6V 2.56kWh LiFePO4 Battery

The Felicity Solar LPBA24100WG1 is a 25.6 V LiFePO4 battery module that stores 2.56 kWh at 100 Ah and pushes 2600-3100 W for 15 seconds. It holds 100-120 A of charge and discharge current continuously, weighs 27 kg, and parallels up to 32 units for 81.92 kWh of storage. That short-duration figure is what separates this model from the other 2.56 kWh modules in the catalogue: 2600-3100 W and a 150 A peak charge and discharge current, both over 15 seconds, above what it carries continuously. Protection comes from a built-in Smart BMS working with a fuse; the operating window runs 22.4-28.8 V with a 22.4 V cut-off, a 28.8 V maximum charging voltage and a 95% depth of discharge rated beyond 6000 cycles. Monitoring runs over CAN2.0, RS485, Wi-Fi and Bluetooth, with an LED display on the unit. It mounts on a wall or on a floor, is rated IP21, charges at 0-55 °C, discharges from -20 to 55 °C and is stored from -20 to 45 °C. It ships at 31 kg in a 472 x 261 x 427 mm carton. The warranty term is 2 Years. We are an authorised Felicity Solar distributor and supply the LPBA24100WG1 from our own stock.

Specifications last updated 23 March 2026

Felicity Solar LPBA24100WG1 25.6V 2.56kWh LiFePO4 Battery full specifications

Electrical

Battery Type	LiFePO4
Cut-Off Voltage	22.4 V
Cycle Life	>6000
Depth of Discharge	95 %
Max Charge/Discharge Power (15 s)	2600-3100 W
Max Charging Voltage	28.8 V
Max Continuous Charge/Discharge Current	100-120 A
Max Parallel Units	32
Max System Capacity	81.92 kWh
Nominal Capacity	100 Ah
Nominal Energy	2.56 kWh
Nominal Voltage	25.6 V
Operating Voltage	22.4-28.8 V
Peak Charge/Discharge Current (15 s)	150 A
Protection	Built-in Smart BMS, Fuse

Mechanical

Communication	CAN2.0, RS485, Wi-Fi, Bluetooth
Display Type	LED
Installation	Wall-Mounted, Floor-Mounted
Package Dimensions	472 x 261 x 427 mm
Package Weight	31 kg

Environmental

Charging Temperature Range	0-55 °C
Discharging Temperature Range	-20 to 55 °C
Protection Degree	IP21
Storage Temperature Range	-20 to 45 °C

Frequently Asked Questions

2600-3100 W, alongside a 150 A peak charge and discharge current over the same 15 seconds. Continuously the module carries 100-120 A within a 22.4-28.8 V operating window.

32 units, for a maximum system capacity of 81.92 kWh, since each module stores 2.56 kWh at 100 Ah and a nominal 25.6 V.

27 kg for the module itself, shipped at 31 kg in a 472 x 261 x 427 mm carton. It mounts on a wall or on a floor, is rated IP21, and the warranty is 2 Years.

Wi-Fi and Bluetooth are both fitted, alongside CAN2.0 and RS485 — four communication interfaces in all. An LED display reports on the unit, which is protected by a built-in Smart BMS and a fuse.
