Valve Regulated Lead Acid
battery

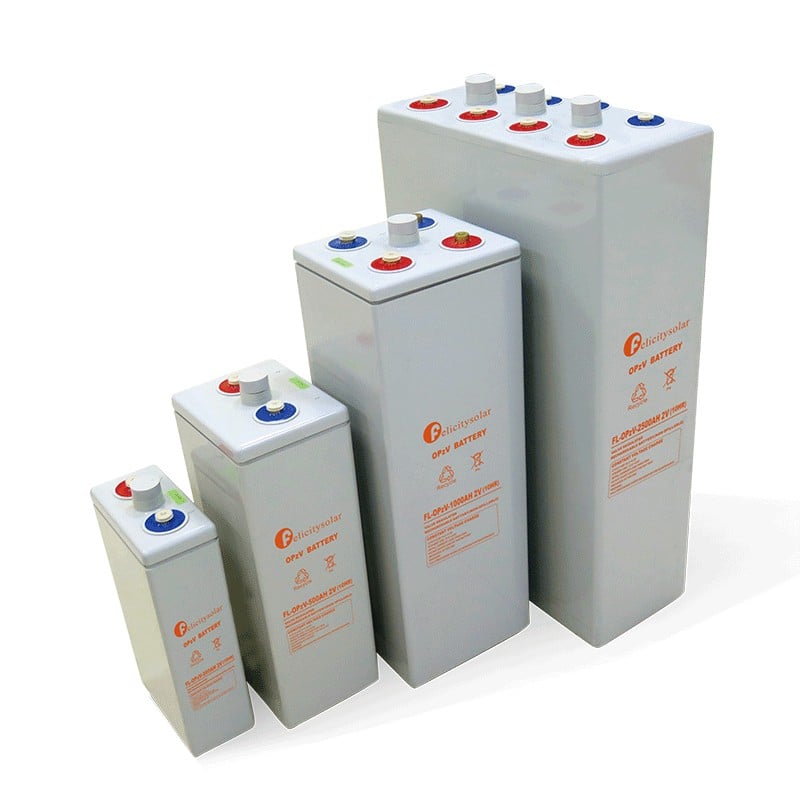

Felicity MJS
FL-OPzV-2500AH-2V
Discover the Felicity Solar FL-OPzV-2500AH-2V battery with 2V voltage and 2500Ah capacity, ideal for high-demand energy storage.
- Voltage Per Unit: 2V (single cell)
- Capacity: 2500Ah @10hr-rate to 1.80V per cell @25°C
750 AEDincl. VAT
Features
Overview
The Felicity Solar FL-OPzV-2500AH-2V battery is engineered for superior performance in energy storage applications. With a robust 2V single cell and a capacity of 2500Ah at a 10-hour rate, this battery is designed to meet the demands of high-capacity energy systems.
Full specifications
Electrical
| Voltage Per Unit | 2V (single cell) |
|---|---|
| Battery Type | Lead-acid gel (OPzV tubular plate, VRLA) |
| Capacity | 2500Ah @10hr-rate to 1.80V per cell @25°C |
| Weight | Approx. 190.0 Kg |
| Max. Discharge Current | 10000A (5 sec) |
| Internal Resistance | Approx. 0.35 mΩ |
| Operating Temperature Range | Discharge: -40°C to +70°C |
| Optimal Operating Temperature Range | 25°C±5°C |
| Float Charging Voltage | 2.25 to 2.3 VDC/unit Average at 25°C |
| Maximum Charging Current | 500A |
| Cycle Service | 2.37 to 2.40 VDC/unit Average at 25°C |
| Self Discharge | Self-discharge ratio less than 2% per month at 25°C |
| Terminal | Thread insert & Bolt (F10-M8) |
| Container Material | A.B.S. (UL94-HB), and UL94-V0 is optional |
| Dimensions | 487(L)×212(W)×807(H) mm |
