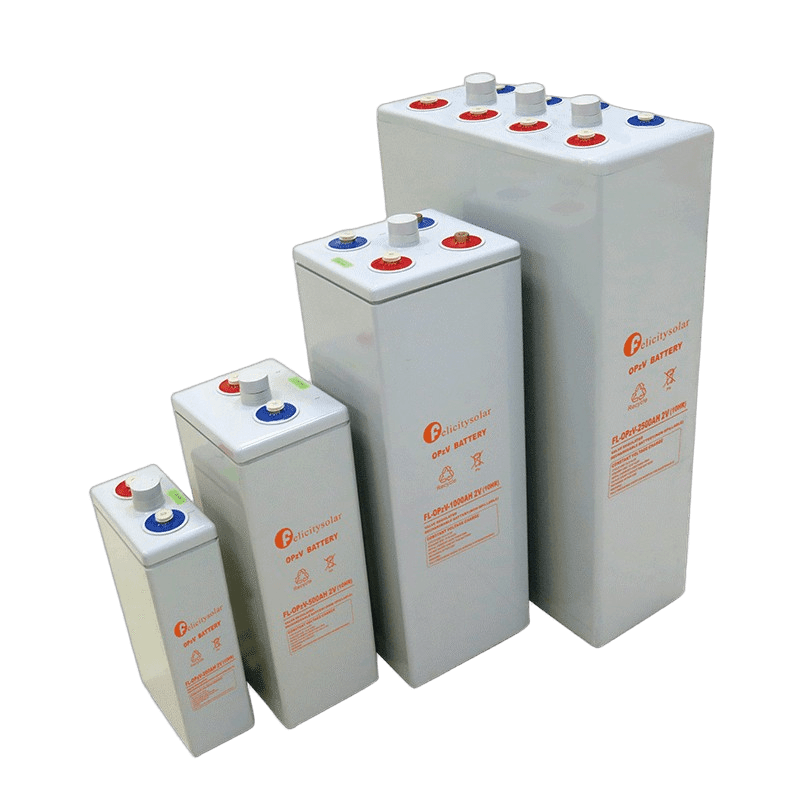

Valve Regulated Lead Acid
battery
Felicity MJS
FL-OPzV-1000AH-2V
Discover the Felicity Solar FL-OPzV-1000AH-2V battery with 2V voltage and 1000Ah capacity, ideal for reliable energy storage.
- Voltage Per Unit: 2V
- Capacity: 1000Ah @10hr-rate to 1.80V per cell @25°C
300 AEDincl. VAT
Features
Overview
The Felicity Solar FL-OPzV-1000AH-2V battery is engineered for optimal performance and durability. With a 2V voltage and a robust 1000Ah capacity at a 10-hour rate, this battery is perfect for demanding energy storage needs.
Full specifications
Electrical
| Voltage Per Unit | 2V |
|---|---|
| Battery Type | Lead-acid gel (OPzV tubular plate, VRLA) |
| Capacity | 1000Ah @10hr-rate to 1.80V per cell @25°C |
| Weight | Approx. 77.0 Kg |
| Max. Discharge Current | 3800A (5 sec) |
| Internal Resistance | Approx. 0.45 mΩ |
| Operating Temperature Range | Discharge: -40°C~70°C |
| Optimal Operating Temperature Range | 25°C±5°C |
| Float Charging Voltage | 2.25 to 2.3 VDC/unit Average at 25°C |
| Maximum Charging Current | 200 A |
| Cycle Service | 2.37 to 2.40 VDC/unit Average at 25°C |
| Self Discharge | Self-discharge ratio less than 2% per month at 25°C |
| Terminal | Thread insert & Bolt (F10-M8) |
| Container Material | A.B.S. (UL94-HB), and UL94-V0 is optional |
| Dimensions | 233(L)×210(W)×681(H) mm |
| Constant Current Discharge Characteristics (A, 25°C) | F.V/Time: 1.90V - 30min: 492.0, 1h: 390.0, 2h: 275.0, 3h: 208.6, 4h: 171.0, 5h: 147.8, 6h: 133.0, 8h: 103.8, 10h: 89.00, 20h: 46.73 |
| Constant Power Discharge Characteristics (W, 25°C) | F.V/Time: 1.90V - 30min: 941.7, 1h: 748.7, 2h: 531.6, 3h: 404.0, 4h: 334.7, 5h: 291.0, 6h: 263.0, 8h: 207.6, 10h: 181.4, 20h: 95.23 |
Certifications
- UL94-HB
- UL94-V0
