Felicity MJS
F1A-100W Solar Street Light
Discover Felicity Solar F1A Series: 105W solar module, 888WH lithium battery, 20800 lm luminous flux, 8H charge time, 12H operation.
- Power: 100 W
- Solar Module: 105W (Mono)
- Luminous Flux: 20800 lm
800 AEDincl. VAT
Features
Overview

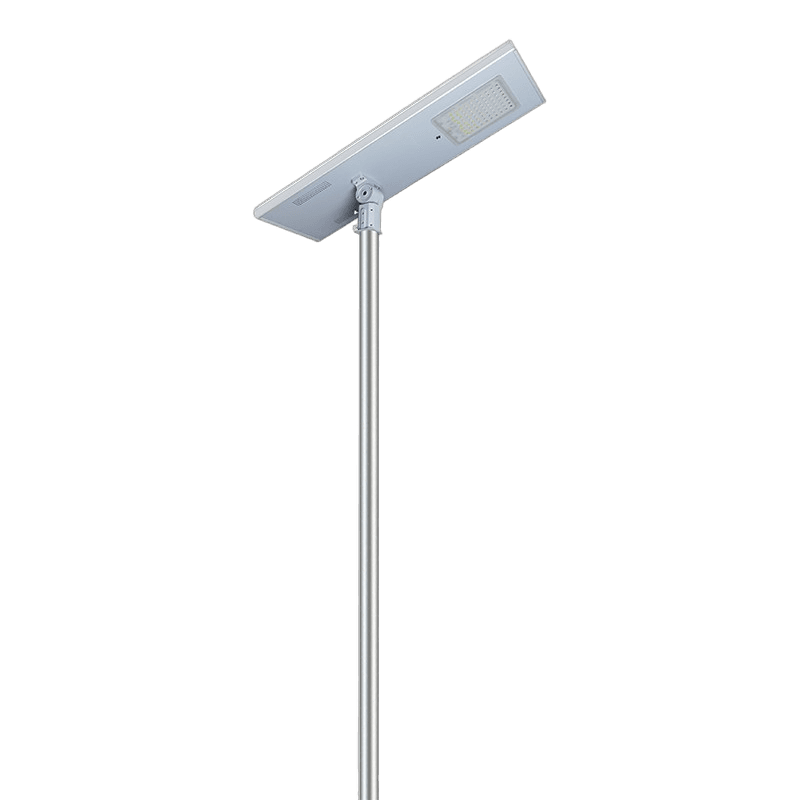

Introducing the Felicity Solar F1A Series, a cutting-edge accessory designed to enhance your solar energy solutions. With a 105W monocrystalline solar module and a high-capacity 888WH lithium battery, this product ensures efficient energy storage and usage. Experience superior lighting with a luminous flux of 20800 lm, capable of operating for over 12 hours after just 8 hours of charging in strong sunlight.
Full specifications
Electrical
| Power | 100 W |
|---|---|
| Solar Module | 105W (Mono) |
| High Capacity Lithium Battery | Built-in 888 Wh |
| Battery Type | LiFePO4 |
| Luminous Flux | 20800 lm |
| Color Temperature | 6500 K |
| Working Mode | Normal mode (default): 4H 100% / 4H 50% / 4H 25%; Induction mode (optional): All night; Induction 100% no induction 20% |
| Solar Panel Charge Time | 8 hours strong sunlight |
| Working Time (All Light Pattern) | ≥12 hours |
| Raining Days Backup | 3 days |
| Induction Angle | 75° x 145° |
Mechanical
| Light Pole Diameter | 80 mm |
|---|---|
| Recommended Installation Height | 10-12 m |
| Product Package Dimensions | 1825 x 449 x 278 mm |
| Product Gross Weight | 51.2 kg |
| Tailstock Package Dimensions | 500 x 315 x 118 mm |
| Tailstock Gross Weight | 8.8 (100W) / 11.8 (120W) kg |
| Support Bracket | Yes |
| Installation | Pole-mount |
Environmental
| Storage Temperature | 0°C to +55°C |
|---|---|
| Charge Temperature | 0°C to +55°C |
| Discharge Temperature | -10°C to +60°C |
| Operating Humidity | ≤90 %RH |
| Ingress Protection | IP65 |
