All in one
Panel, battery, controller and LED in a single housing.

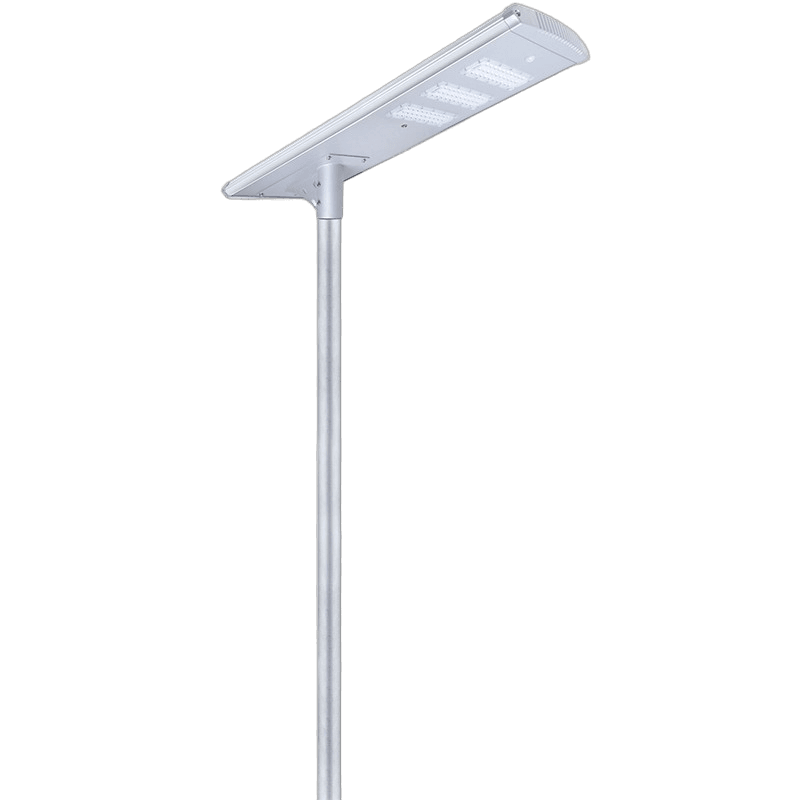

Felicity MJS
A3-40W
40 W, all-in-one solar street light with a built-in LFP battery.
- Power: 40 W
- Luminous Flux (all light patterns): 6400 lm
280 AEDincl. VAT
Features
Overview
The Felicity Solar A3-40W is an all-in-one solar street light: panel, LFP battery, controller and LED in one housing, so there is no cable run and no separate pole box. 40 W, It charges in about eight hours of strong sunlight, lights for twelve hours or more on the full pattern, and holds three days of rain in reserve.
Full specifications
Electrical
| Power | 40W |
|---|---|
| Solar Module | 60W (Mono) |
| High Capacity Lithium Battery | Built-in 350Wh |
| Luminous Flux (all light patterns) | 6400 lm |
| Solar Panel Charge Time | 8H strong sunlight |
| Working Time (all light pattern) | ≥12 hours |
| Raining Days Backup | 3 days |
| Color Temperature | 6500K |
| Induction Angle | 70° x 140° |
| Working Mode | Normal mode (default): 4H 100%, 4H 50%, 4H 25%; induction mode (optional): no induction or customization |
Mechanical
| Recommended Installation Height | 3-6 m |
|---|---|
| Product Package Dimensions | 1115*375*145 mm |
| Product Gross Weight | 23.2 kg |
| Light Pole Diameter | 76-114mm |
| Support Bracket | Yes |
| Tailstock Package Dimensions | 420*125*160 mm |
| Tailstock Gross Weight | 7.3 kg |
Environmental
| Storage Temperature | 0-55°C |
|---|---|
| Charge Temperature | 0-55°C |
| Discharge Temperature | -10°C-60°C |
| Operating Humidity | 0~90% (No condensation) |
| Ingress Protection | IP65 |
Certifications
- CE
